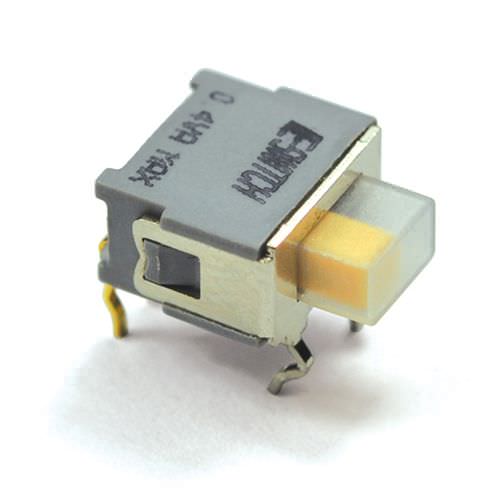

Slide switch 500R series

single-polewaterproofminiature

The 500R Series sealed slide switch offers an IP67 rating for ingress protection from water, dust, and the elements, and with a 40,000 cycle life expectancy, you can depend on this slide switch. The actuator has up to three positions, has both Single Pole, Double Throw (SPDT) and Double Pole, Double Throw (DPDT) circuit options, and comes with gold contacts that have electrical ratings of 0.4VA of 20V alternating or direct current. The 500R Series sealed slide switches are PC board mountable at a right angle or vertically. These slide switches can work well in a variety of applications and markets where protection from moisture and dust is of a concern. Some of those possible applications include, but are not limited to: • Audio/visual • Consumer electronics • Computer peripherals • Instrumentation • Telecommunications • Medical equipment FEATURES • Offers IP67 ingress protection from dust and moisture • Up to 3 actuator positions • SPDT and DPDT circuit options • Gold contacts
