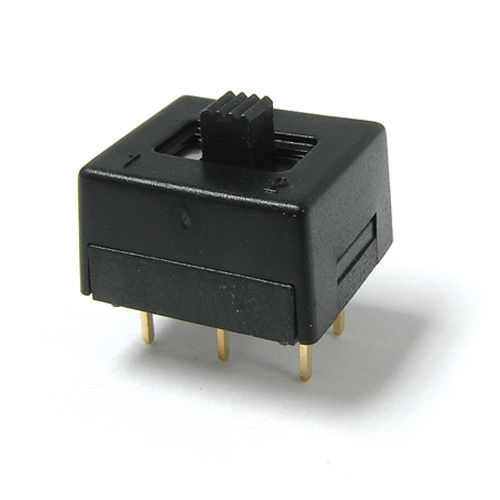

Slide switch 600 series

single-polebipolarflame control

The 600 Series miniature slide switch offers single- and double-pole options and is panel mountable. You can choose from multiple termination options: right angle PC board pin, vertical PC board pin, and surface mount. There's also three actuation options: recessed, extended, or side. The actuator has up to three positions for performing multiple maintained functions. This slide switch series provides a durable, lightweight plastic switch body housing. The 600 Series slide switches come with silver contacts rated for 1A, 30VDC, or gold contacts rated for 0.4VA, 20V of alternating or direct current. The 600 Series miniature slide switch is commonly used for: • Consumer electronics • Computer servers/peripherals • Test and measurement • Instrumentation FEATURES • 1 or 2 poles with up to 3 actuator positions • PC board mounting design with surface mountable option • Vertical and horizontal actuation options
