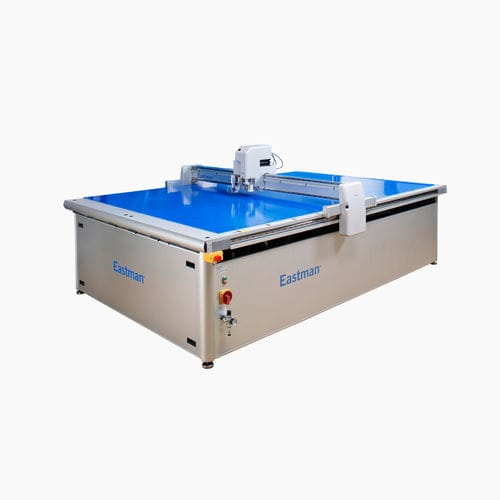

Knife cutting machine Hawk
for industrial applicationsbridgehigh-speed

knife cutting machine
knife cutting machine
knife cutting machine
Add to favorites
Compare this product


Characteristics

Technology
knife
Applications
for industrial applications
Configuration
bridge
Other characteristics
high-speed, precision

Description

Eastman’s Hawk TL offers high-speed, precision cutting, impressing with its functional design and concentration on the basic essentials: • Freely accessible work surface from all sides • Extremely robust traverse bridge with minimal protruding at the sides and rack and pinion drive system in all axis for slip-free drive. • Powerful AC-servo motors and modern CAN-Bus-steering technique enable high throughput System Sizes : Contact the factory for additional information. Material clearance thickness : max. 1.8 inches depending on the tool head and protective underlay Static repeatability : ± 0.02 mm/m @ 20deg C (0.008 inch @ 68deg F) Electric - control power / PC : 200-210V, 3ph, 50/60Hz, 2.6kVA Max. cutting speed : 45 in/sec (Depending on the cutter size, cutter configuration and tool head) Max. acceleration : 1.15G (Depending on the cutter size, cutter configuration and tool head) Electric - Vacuum Blower : 208/230/380/460/575V, 50/60 Hz, 8.5 HP, VFD control Operating temperature : +10 deg C up to +30degC (50F up to 86F) Relative humidity : 40-80% non-condensing maximum Acceleration : 1.0 g Disclaimer : Achievable speeds and accelerations are tool-, material- and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
