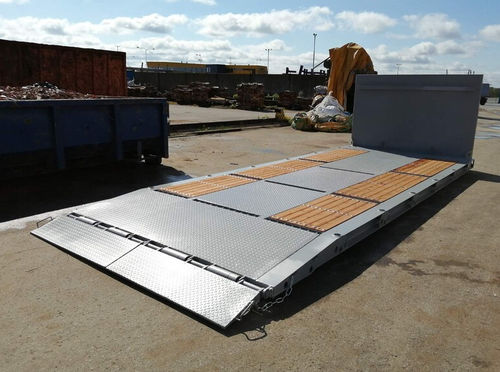

Lifting platform HLP25R35
mobilefor trucksreinforced

Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced
Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced
Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced - image - 2
Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced - image - 3
Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced - image - 4
Lifting platform - HLP25R35 - Ecopress group - mobile / for trucks / reinforced - image - 5
Add to favorites
Compare this product

Characteristics

Function
lifting
Type
mobile
Applications
for trucks
Other characteristics
reinforced
Load limit

25 t
(28 us ton)

Description

Frame full reinforced according to SS3021 (UNP180), DIN30722/SFS4417 (INP180) Full reinforced front frame UNP180 UNP100 cross profiles HEA160 sides Floor 5mm corrugated sheet S355 in middle Water resistant wood 120 x 45 Bolted on sides of main frame Front tool box both sides Lashing belt/chains holding bar 12pcs D63 sleeves and ALU posts 600mm Ramps 350mm long integrated 2 units, low built Cross ladders for posts 4 pcs Laxo tubes front and back for 20FT ISO container transport Reflex decals Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M - Clear coat
