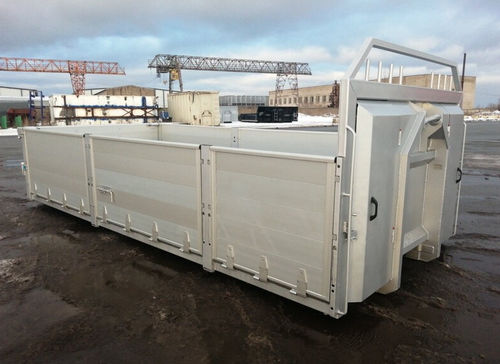

Transport platform PA14D

mobilefor trucksreinforced

With side and rear panels in several different aluminum variants and with removable side and rear pillars, the flatbed is quickly transformed into new transport tasks. With folded-down anchoring loops on the inside and external strap hooks, opportunities are created for secure anchoring regardless of load. There are a multitude of possibilities for the rear: spreader hatch, doors, combi hatch, hanging/dropping tailgate, etc. Shape the flatbed according to your needs with either piece goods or the thicker gravel hatches. It is also possible to move the front trunk back to make room for e.g. crane, which makes the flatbed even more useful. Platform with foldable aluminum sides 5600mm , 6000mm inside length Frame full reinforced according to SS3021 (UNP200), DIN30722/SFS4417 (INP200) Full reinforced front frame UNP180 Floor 4 mm Hardox 450 or 5mm tear plate S355 Aluminum sides 25mm with 4mm thickness, 1000mm height Top hinged and side opening reinforced aluminum back door with duomatic flap Front tool box both sides Front left door with ladder integrated under the floor Kinnegrip K20 posts 5/6 internal lashing loops along both sides, Briab 2.5 tons 5 Laxo tubes in middle of bottom and 5 Laxo tubes both sides in a row, 15 caps on top Lashing belt/chains holder bar inside front wall 15 pcs aluminum posts 600mm Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M - Clear coat
