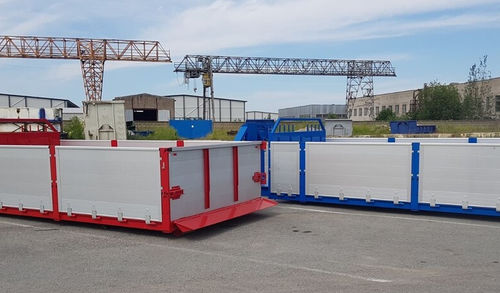

Lifting platform PA11D CRANE

mobilefor trucksreinforced

Platform with foldable aluminum sides 5000mm inside length, total length 6250mm Frame full reinforced according to SS3021 (UNP200), DIN30722/SFS4417 (INP200) Full reinforced front frame UNP180 Floor 4 mm Hardox 450 Aluminum sides 25mm with 4mm thickness, 1000mm height Top hinged and side opening reinforced aluminum back door with duomatic flap Front frame with 20mm plate for crane installation Front left door with ladder integrated on inside Kinnegrip K20 posts 5 internal lashing loops along both sides, Briab 2.5 tons 5 Laxo tubes in middle of bottom and 5 Laxo tubes both sides in a row, 15 caps on top Lashing belt/chains holders inside front wall 7 pcs aluminum posts 1500mm Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M - Clear coat
