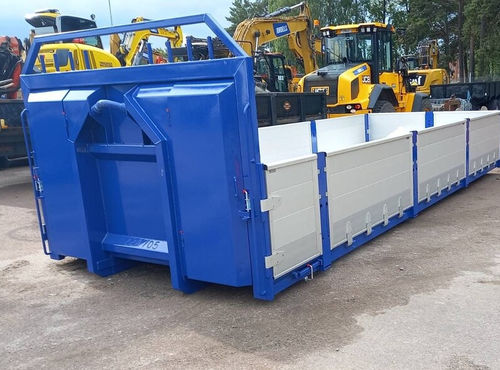

Lifting platform PA11

mobilefor trucksreinforced

Platform with foldable aluminum sides 6300mm , 6500mm, 6800mm inside length Frame full reinforced according to SS3021 (UNP200), DIN30722/SFS4417 (INP200) Full reinforced front frame UNP180 Floor 4 mm Hardox 450 or 5mm tear plate S355 Aluminum sides 25mm with 4mm thickness, 800mm height Double doors with K20 post in the middle Front tool box both sides Front left door with ladder integrated under the floor Kinnegrip K20 posts 5/6 internal lashing loops along both sides, Briab 2.5 tons 5 Laxo tubes in middle of bottom and 5 Laxo tubes both sides in a row, 15 caps on top Lashing belt/chains holder bar inside front wall 15 pcs aluminum posts 600mm Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M - Clear coat
