Lifting platform PA9G

mobilefor trucksreinforced

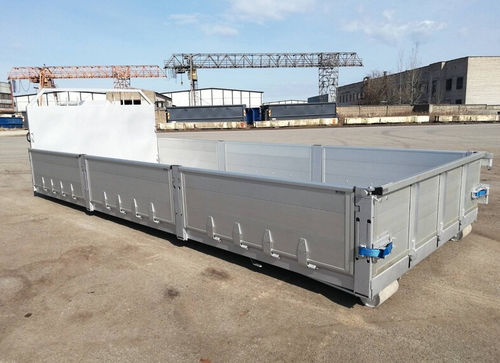

Platform with foldable aluminum sides 5600/6000/6300/6500 mm inside length, total length +300mm Frame full reinforced according to SS3021 (UNP180), DIN30722/SFS4417 (INP180) Full reinforced front frame UNP180 Floor 4 mm S355/ alternatively 5mm S355 or Hardox 450 Aluminum sides 25mm with 2,5mm thickness, 600mm height Top hinged and side opening reinforced aluminum back door with manual locking device Front left drop side door with ladder integrated on inside Kinnegrip K20 posts 5 internal lashing loops along both sides, Briab 2.5 tons 2 internal lashing loops on front wall both sides, Briab 2.5 tons Lashing belt/chains holders inside front wall Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M - Clear coat Options 5 Laxo tubes in middle of bottom and 5 Laxo tubes both sides in a row, 15 caps on top 15 pcs aluminum posts 600mm Lashing ladders Water resistant Plywood floor 28mm
