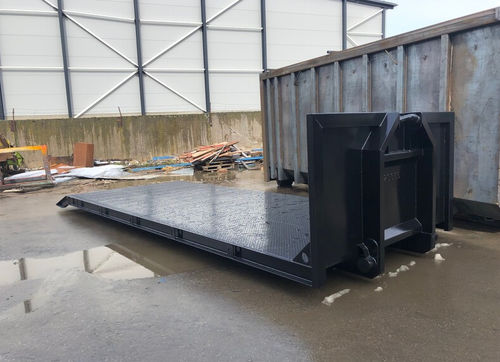

Lifting platform MF20S
mobilefor trucksreinforced

Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced - image - 2
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced - image - 3
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced - image - 4
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced - image - 5
Lifting platform - MF20S - Ecopress group - mobile / for trucks / reinforced - image - 6
Add to favorites
Compare this product

Characteristics

Function
lifting
Type
mobile
Applications
for trucks
Other characteristics
reinforced
Load limit

Max.: 20 t
(22 us ton)

Min.: 18 t
(20 us ton)

Description

Lifting capacity 18 tons, max allowed 20 tons Frame reinforced according to SS3021 (UNP180), DIN30722/SFS4417 (INP180) Full reinforced front frame UNP180 UNP100 cross profiles UNP180 sides Floor 4mm corrugated sheet S355 Integrated ramp 1000mm long Cross ladders for posts Surface treatment: - shot blasting sa 2.5 - outside min 120μm 2K polyurethane EN ISO 12944 C3M Options Wood 120 x 45 between cross reinforcements Wood floor 120 x 45 on both sides of main frame Front tool box both sides Lashing belt/chains holding bar 12pcs D63 sleeves Iron posts 600mm ALU posts 600mm Extra detachable ramp 935mm long Cross ladders for posts 4 pcs Laxo tubes front and back for 20FT ISO container transport
