Plano-convex lens element #25 series

fused silicalaser

Overview

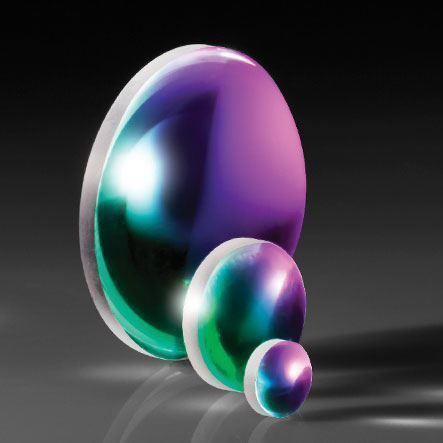

TECHSPEC® Laser Line Coated Fused Silica Plano-Convex (PCX) lenses are optimized for maximum throughput at the 785 nm design wavelength. Intended for low-power HeNe, diode and Nd:YAG laser sources, these lenses use laser-line V-Coat anti-reflective coatings with maximum reflectance <0.25% per surface at the design wavelength to reduce reflection losses in multi-element optical assemblies.

Key Features

• <0.25% maximum reflection per surface at 785 nm (R_abs <0.25% @ 785 nm)
• Diameter range: 5 mm – 50 mm
• EFL range: 10 mm – 250 mm
• Fused silica substrate
• Laser-line V-Coat AR optimized for 785 nm (other options: 405, 532, 1064, 1550 nm)

Common Specifications

• Bevel: Protective as needed
• Substrate: Fused Silica
• Coating: 785 nm V-Coat (laser-line V-Coat AR)
• Coating specification: R_abs <0.25% per surface @ 785 nm
• Design Wavelength (DWL): 785 nm
• Diameter range: 5 mm to 50 mm
• EFL range: 10 mm to 250 mm
• Focal length tolerance: ±1%
• Surface quality: 40-20
• Power (P-V) @ 632.8 nm: 1.5 λ
• Irregularity (P-V) @ 632.8 nm: λ/4

Applications

• Low-power diode laser focusing and coupling
• HeNe laser systems
• Nd:YAG laser systems
• Multi-element optical assemblies requiring low surface reflection at 785 nm

Notes
Supplied with protective beveling as required. TECHSPEC® components are designed, specified, or manufactured by Edmund Optics to optimize transmission at the design wavelength.
