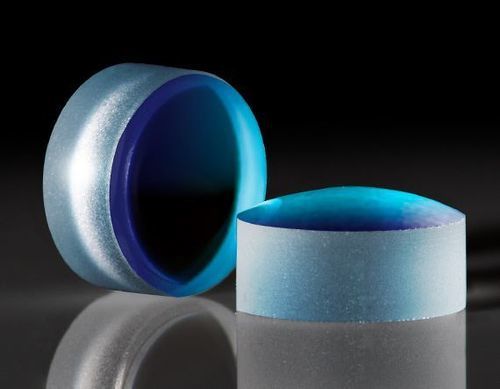

Plano-convex microlens PCX

BK7visibleinfrared

Overview
Micro plano-convex (PCX) lenses deliver the optical behaviour of standard PCX elements in a much smaller form factor. Diameters can be as small as 1 mm and focal lengths as short as 0.6 mm, enabling compact, lightweight optical assemblies for integration into handheld and miniaturized devices. Options include broadband antireflection coatings optimized from the visible to the infrared.

Key Features

• Diameters down to 1 mm
• Focal lengths from 0.6 mm for compact integration
• Broadband antireflection coating options (visible to infrared)
• Low mass suitable for miniature optical systems

Applications

• Compact handheld devices (e.g., phone cameras)
• Medical instruments and other miniature optical systems

Technical specifications

• Diameter: down to 1 mm
• Minimum focal length: 0.6 mm
• Focal length tolerance: ±1%
• Bevel: protective as needed
• Coatings: broadband antireflection options (visible to infrared)
• Design: optimized for low weight and short focal length integration in compact optical systems
