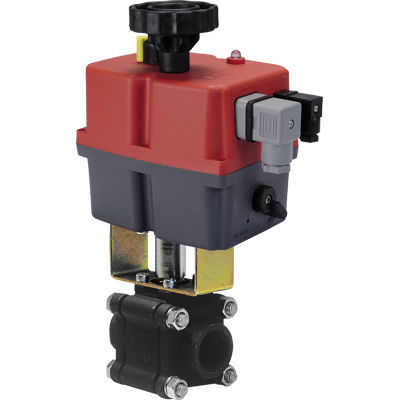

Ball valve ARGOS serieselectrically-operatedmanualfor oil
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-operated, manual
- Media
- for oil
- Body
- IP65
- Other characteristics
- socket weld, with actuator
- DN
Min.: 0.25 in
Max.: 2 in
- Pressure
100 bar, 140 bar
(1,450.4 psi, 2,030.5 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 180 °C
(356 °F)
Description
EL-EH ACTUATOR FEATURES:
• ROTATION ANGLE: 90°.
• TEMPERATURE LIMITS: -20°C / +70°C.
• SUPPLY VOLTAGE: 012 - 240V.
• PROTECTION DEGREE: IP65.
• STATIC TORQUE SUPPLIED: 20 N/m - 350 N/m.
• ROTATION TIME: 11 s. - 60 s.
STANDARD VALVE FEATURES:
• TEMPERATURE LIMITS:
-10°C / +150°C (PTFE)
to be used use up to +180°C (PTFE + CRB).
• MAXIMUM WORKING PRESSURE:
1/4” - 1” PN140
1” 1/4 - 2” PN100.
• CONNECTIONS:
F/F Rp F/F Rp UNI ISO 7/1 (UNI EN 10226)
DIN2999 parallel GAS
F/F NPT
SW ANSI B16.11 socket weld
BW ANSI B16.25 butt weld sch40.
For general features and special versions refer to data on the manual valve.
For further information on the actuator technical features refer to the specific data sheet for actuator at the end of this catalogue.
EL-EH • ER-EQ
On request:
• EQ actuator is available for valves of all dimensions in 24 Vac – 230 Vac – 400 V3N ensions tension.
