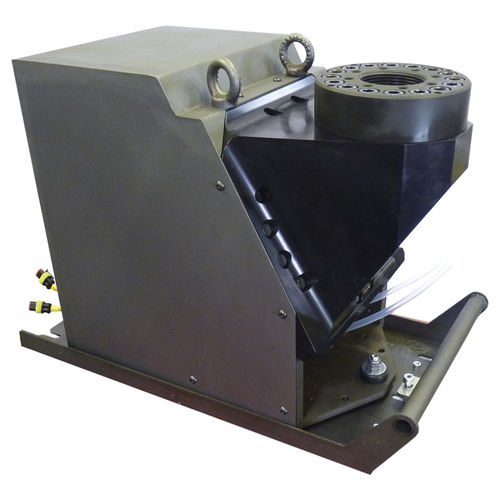

Mass flow meter IFR 1500-6000

for oilfor fuelsteel

The IFR1500 flowmeter is a device dedicated to measure injected volumes or masses but also the injection rate step by step from your injector. It is perfectly suited to the control of high energy multi-shot injection systems fitted to modern diesel or gasoline engines. FAST: This instantaneous mass flowmeter allows you to measure up to 10 injections per revolution. COMPACT: Only one device is necessary to measure the quantity injected and the injection rate simultaneously. ACCURATE: It offers ultra-fast and precise measurements of all injection parameters at each turn: quantity injected, injection rate and opening/closing delay. COMPLETE: The IFR 1500 gives instant, minimum, maximum and standard deviation measurement of all the parameters you need. it’s made of : - a mechanics integrating mass, volume, pressure and temperature measurements - an electronics managing the measurement cycle and carrying out the calculations at each turn -xIFR software, supervision interface between the user and the measuring device. Main fonctions - Measures independent of pressures, quantities, and timing of injections. - Back-pressure adjustable from 10 to 200 bar without external equipment (back-pressure generated by the injector). - Configurable measurement window from 90 to 270° pump (180° to 540° 4-stroke motor). - Pump speed range from 30 to 4200 rpm (120 to 8400 RPM 4-stroke motor), 0.5 Hz to 70 Hz. - Fully integrated injector pilot generator (1 to 10 injections per revolution, automatic increase or decrease test, …). - Automatic analysis of very effective injections Applications - Truck - Boat - Construction machinery - Diesel generators
