• protection against inorganic gases and vapours
Product designation: Gas Filter DIRIN 230 B2
Applied standard: DIN EN 14387 (DIN = German Institute for Standardization)
Utilization: In connection with full masks (DIN EN 136) and half masks (DINEN 140) with round thread connection (DIN EN 148-1). Protection against inorganic gases and vapours.

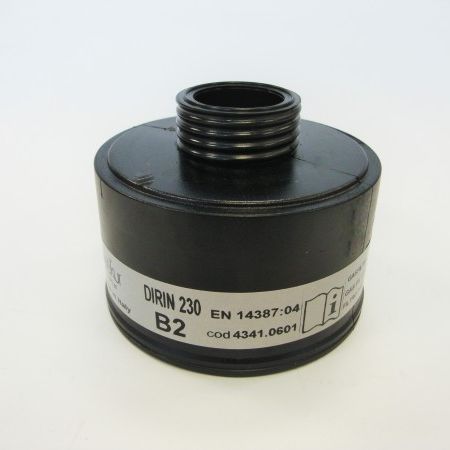

Description: The filter case is round and consists of filter pot and filter lid. The filter pot contains the round thread connection according to DIN EN 148-1; the filter lid is open to the inhalation side. There is a filter bed with activated charcoal. This is firmly fixed by the filter case and internal screens. Both filter openings are locked by water-vapour-proof cover caps.
All used materials are incinerated.
Filter case: Plastic (ABS)
Sorbents: impregnated active charcoal
Cover cap: Plastic
Operating principle: By addition to sorbent (Impregnated active charcoal), the gases and vapours will be removed from the ambient air.
Weight: approx. 230 g
at 30 l/min, constant flow max. 1.4 mbar (according to 14387)
at 95 l/min, constant flow max. 5.6 mbar (according to 14387)
Trade mark of manufacturer (LOGO)
Consider the information brochure
Expiry of shelf-life (MM/YYYY)
Identification color: grey
Handling: Open the Filter (Remove the cover caps) and screw the Filter firmly into the facepiece
connector directly before use. Use the Filter in accordance with the information brochure.
