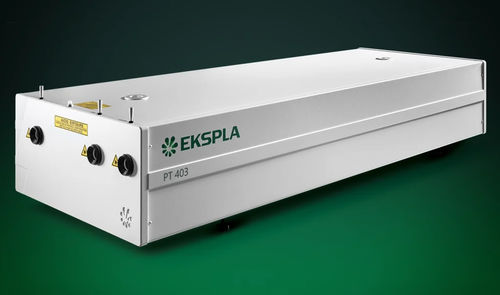

Picosecond laser system PT403

solid-statetunablefor spectroscopy

The PT403 series is a tunable wavelength picosecond laser system that integrates a 1 kHz repetition rate DPSS pump laser and an optical parametric generator into a single housing, providing tunable output from 210 to 2300 nm in one compact unit. This design results in a nearly twice smaller footprint, shorter installation time, improved stability, and substantial user benefits compared to systems with separate laser and OPO units.

Features

• Tuning range: 210–2300 nm
• Motorized hands-free tuning
• High pulse energy at 1 kHz rates
• Diode pumped solid state design
• Narrow linewidth: < 9 cm⁻¹
• Remote control via keypad
• PC control
• Optional streak camera triggering pulse with < 10 ps rms jitter
• Turn-key operation
• Air cooled – external water supply is not required
• Low maintenance costs

Applications

• Time resolved fluorescence (including streak camera measurements), pump-probe spectroscopy
• Laser-induced fluorescence
• Infrared spectroscopy
• Nonlinear spectroscopy: surface-SH, Z-scan
• Other spectroscopic and nonlinear optics applications

Benefits

• Better long term stability (compared with layout where laser and OPO are in different units)
• Higher safety – all beams are in the box
• Shorter installation time
• Almost twice smaller footprint

Description

• All-in-one box solution with all components in a single compact housing, eliminating misalignment risks between separate units.
• Employs industry and market-tested solutions for reliability.
• Pump laser is based on Ekspla PL2210 series diode-pumped, air-cooled, mode-locked Nd:YAG laser.
• Optical parametric generator is based on PGx03 picosecond optical parametric amplifier systems, with fully automatized and microprocessor-based control for precise wavelength tuning.
• Produces low divergence beams with moderate linewidth (typically < 9 cm⁻¹) at ~20 ps pulse duration.
• Versatile, cost-efficient tool for scientific research in time-resolved fluorescence, pump-probe spectroscopy, laser-induced fluorescence, infrared spectroscopy, and more.

Simple and Convenient Laser Control

• Operable from master device or PC via USB (VCP, ASCII commands), RS232 (ASCII commands), LAN (REST API), or WLAN (REST API), depending on system configuration.
• Remote control pad with backlit display for easy operation even with laser safety glasses.

• Communication interfaces:
  • USB: virtual serial port, ASCII commands
  • RS232: ASCII commands
  • LAN: REST API
  • WLAN: REST API

Design

• Functional parts:
  • 1 kHz repetition rate DPSS pump laser
  • Optical parametric generator (OPG)
  • Electronic control unit
• Single optical unit provides tunable output from 210 to 2300 nm.

Options

• Option SF: Energy increase in 300–409 nm range by sum-frequency generation (>20 µJ at 340 nm; pulse energies ~10% lower compared to system without SF option).
• Options -H, -2H, -3H: 1064 nm, 532 nm, or 355 nm outputs (all energy directed to this output port; outputs are not simultaneous).
• Customized solutions available for specific requirements.

Output Ports

• Port 1: 1064 / 532 nm
• Port 2: 210–2300 nm (PT403-SH/SF only)
• Port 3: 355 nm
• Port 4: 410–2300 nm

Specifications / Technical Characteristics

• Output wavelength tuning range:
  • SH: 210–409 nm (PT403-SH)
  • Signal: 410–709 nm
  • Idler: 710–2300 nm
• Output pulse energy:
  • SH: 15 µJ (PT403-SH)
  • Signal: >75 µJ
  • Idler: >25 µJ
• Pulse repetition rate: 1000 Hz
• Linewidth: <9 cm⁻¹ (PT403), <12 cm⁻¹ (PT403-SH)
• Typical pulse duration: ~20 ps
• Scanning step:
  • SH: 0.05 nm (PT403-SH)
  • Signal: 0.1 nm
  • Idler: 1 nm
• Typical beam size: ~2 mm
• Beam divergence: <2 mrad
• Beam pointing stability: ≤100 μrad rms
• Beam polarization:
  • SH: horizontal (PT403-SH)
  • Signal: horizontal
  • Idler: vertical
• Optical pulse jitter:
  • Internal triggering: <50 ps (StDev) in respect to TRIG1 OUT pulse
  • External triggering: ~3 ns (StDev) in respect to SYNC IN pulse
• TRIG1 OUT pulse delay: -400 … 150 ns
• Operating requirements:
  • Room temperature: 22 ±2 °C
  • Relative humidity: 20–80% (noncondensing)
  • Power requirements: 100–240 V single phase, 47–63 Hz
  • Power consumption: <0.6 kW
  • Water service: air cooled
  • Room cleanness: not worse than ISO Class 9
