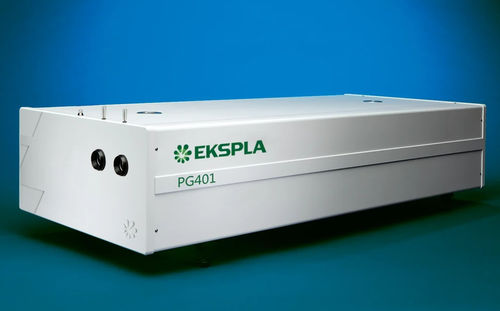

Picosecond laser system PGx01

ultravioletmid-infraredbroadly tunable

The PGx01 series is a high energy, broadly tunable picosecond optical parametric amplifier (OPA) designed for advanced spectroscopy and research applications. Travelling Wave Optical Parametric Generators (TWOPG) provide ultra-fast, tunable coherent light sources spanning from the ultraviolet (UV) to the mid-infrared (mid-IR) spectrum, making them ideal for a wide range of scientific investigations.

Features

• Ultra-wide spectral range from 193 to 16,000 nm
• High peak power (>50 MW) suitable for non-linear spectroscopy applications
• Narrow linewidth <6 cm⁻¹ (for UV < 9 cm⁻¹)
• Motorized hands-free tuning in 193–2,300 nm or 2,300–16,000 nm range
• PC control and remote control via keypad

Applications

• Nonlinear spectroscopy: vibrational-SFG, surface-SH, Z-scan
• Pump-probe experiments
• Laser-induced fluorescence (LIF)
• Other laser spectroscopy applications

Description
The PGx01 series consists of several functional modules: optical parametric generator (OPG), diffraction grating-based linewidth narrowing system (LNS), optical parametric amplifier (OPA), and an electronic control unit. The OPG module generates parametric superfluorescence (PS), with spectral properties determined by the nonlinear crystal and varying with wavelength. For narrowband radiation, the OPG output is narrowed by the LNS to 6 cm⁻¹ and used to seed the OPA.

Output wavelength tuning is achieved by adjusting the angle of the nonlinear crystal(s) and grating, with precise stepper motors and computerized control ensuring exceptional wavelength reproducibility. Nonlinear crystal temperature stabilization provides long-term output stability. Built-in photodetectors monitor pump pulse energy to protect the crystals, and the control unit alerts if energy exceeds preset values.

The system can be operated via master device or PC (USB, RS232, LAN) or from a remote control pad with a backlit display, suitable for use with laser safety glasses.

Available Models

• PG401: Tuning range from 420 to 2300 nm, optimized for highest pulse energy in the visible spectrum, suitable for many spectroscopy applications.
• PG501-DFG: Tuning range from 2300 to 16000 nm, optimal for vibrational-SFG spectroscopy setups.

PG401-DFG1 Features

• The broadest hands-free tuning range – from 420 to 10000 nm

Gap Free Tuning Extension for PG401

• Gap-free tuning range 410–709, 710–2300 nm
• Linewidth <18 cm⁻¹

Specifications

• Tuning range: 193–16,000 nm (model dependent)
• Output pulse energy: >1000 µJ at 450 nm (PG401), >100 µJ at 300 nm (PG401-SH), >50 µJ at 200 nm (PG401-DUV), >200 µJ at 3700 nm and >30 µJ at 10,000 nm (PG501-DFG1)
• Linewidth: <6 cm⁻¹ (PG401, PG501-DFG1), <9 cm⁻¹ (PG401-SH, PG401-DUV)
• Max pulse repetition rate: 50 Hz
• Scanning step: Signal: 0.1 nm, Idler: 1 nm (PG401)
• Typical beam size: ~4 mm (PG401), ~3 mm (PG401-SH/DUV), ~5 mm (PG501-DFG1)
• Beam divergence: <2 mrad (PG401, PG401-SH/DUV), <0.5 mrad (all models)
• Beam profile: Homogeneous, without hot spots, Gaussian fit >90%
• Pulse duration: ~20 ps (typical), 29 ± 5 ps (all models)
• Physical size (W x L x H): 456 × 633 × 244 mm (PG401), 456 × 1031 × 249 ± 3 mm (others)
• Operating temperature: 15–30 °C
• Power requirements: 100–240 V AC single phase, 47–63 Hz
• Power consumption: <100 W

Recommended Pump Sources

• PL2231-50-TH, PL2251A-TH (PG401, PG401-SH, PG401-DUV)
• PL2231-50-SH, PL2251A-SH (PG501-DFG1)

Ordering Information

• Ordering diagrams and additional details are available for PG4xx and PG5xx models.

Performance and Drawings

• Performance tuning curves and external dimension drawings are available for all models.

Characteristics / Technical Specifications

• Ultra-wide spectral range: 193–16,000 nm
• High peak power: >50 MW
• Narrow linewidth: <6 cm⁻¹ (UV <9 cm⁻¹)
• Motorized hands-free tuning: 193–2,300 nm or 2,300–16,000 nm
• PC and remote keypad control
• Output pulse energy: up to >1000 µJ at 450 nm
• Pulse duration: ~20 ps (typical), 29 ± 5 ps
• Max repetition rate: 50 Hz
• Beam divergence: <2 mrad, <0.5 mrad (model dependent)
• Beam profile: Homogeneous, Gaussian fit >90%
• Operating temperature: 15–30 °C
• Power requirements: 100–240 V AC, 47–63 Hz
• Power consumption: <100 W
• Physical size: 456 × 633 × 244 mm (PG401), 456 × 1031 × 249 ± 3 mm (others)
