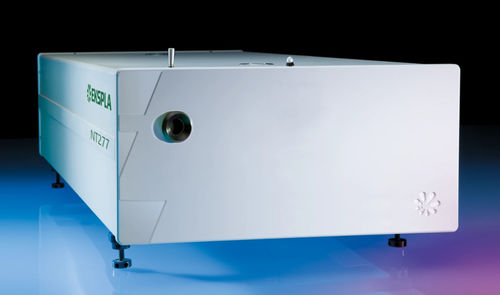

Pulsed laser system NT270

nanosecondQ-switchedsolid-state

The NT270 series is a tunable wavelength NIR-MIR range DPSS laser system designed for advanced IR applications. It delivers hands-free, no-gap tuning from 2500 nm to 4475 nm at a 1 kHz repetition rate, all from a single compact housing. This wide IR tuning range makes it an excellent choice for applications such as scanning Near-field Optical Microscopy (s-SNOM), single molecule vibrational spectroscopy, and gas spectroscopy.

Features

• Customers recognized reliability
• Two years warranty
• Integrates DPSS pump laser and OPO into single housing
• Separate output ports for the pump laser and OPO beams
• OPO output wavelength range from 2500 nm to 4475 nm
• Narrow linewidth
• Hands-free, fast wavelength tuning (including automatic wavelength scan)
• <7 ns pulse duration
• Remote control via key pad or PC

Applications

• Scanning Near-field Optical Microscopy (s-SNOM) microscopy
• Single molecule vibrational spectroscopy
• IR spectroscopy
• Gas spectroscopy

Description
NT270 series tunable laser systems integrate a nanosecond Optical Parametric Oscillator (OPO) and Diode-Pumped Solid–State (DPSS) Q-switched pump laser into a single compact housing. Diode pumping enables fast data acquisition at high pulse repetition rates up to 1 kHz while avoiding frequent flashlamp changes. The pump lasers do not require water for cooling, reducing running and maintenance costs. All lasers feature motorized tuning across the specified range, with output wavelength settable from a control pad with a backlit display or from a PC using supplied LabVIEW™ drivers. High conversion efficiency, stable output, easy maintenance, and compact size make these systems an excellent choice for many applications.

Benefits

• Hands-free wavelength tuning – no need for physical intervention
• Wide (2500 – 4475 nm) tuning range is highly useful for s-SNOM and other IR applications
• Cost-effective solution covering a wide tuning range from a single source
• End pumping with diode technology ensures high reliability and many fired shots, leading to low maintenance costs
• High integration level saves valuable laboratory space
• Air cooling eliminates the need for water, ensuring easy operation and simple installation or integration
• In-house design and manufacturing of complete systems, including pump lasers, guarantees on-time warranty and post-warranty services and spares supply
• Variety of control interfaces: USB, RS232, LAN, and WLAN for easy control and integration with other equipment

Specifications

• OPO output wavelength range: 2500–4475 nm (idler)
• Pulse energy (idler): 80 μJ at 3000 nm
• Pulse repetition rate: 1000 Hz
• Pulse duration: 5–7 ns
• Linewidth: <10 cm⁻¹
• Minimal tuning step (idler): 1 cm⁻¹
• Polarization (idler): vertical
• Typical beam diameter: 4 mm
• Pump wavelength: 1064 nm
• Typical pump pulse energy: 1.9 mJ
• Pump pulse duration: <10 ns
• Beam quality: fit to Gaussian >90%
• Pulse energy stability (StdDev): <0.5%
• Unit size (W × L × H): 305 × 701 × 270 mm
• Power supply size (W × L × H): 449 × 376 × 140 mm
• Umbilical length: 2.5 m
• Cooling: air-cooled
• Room temperature: 18–27 °C
• Relative humidity: 20–80% (non-condensing)
• Power requirements: 100–240 V AC, single phase, 50/60 Hz
• Power consumption: <0.5 kW
• Cleanliness of the room: not worse than ISO Class 9

Note

• Laser must be connected to mains electricity at all times. If disconnected for more than 1 hour, the system needs a few hours of warm-up before switching on.
