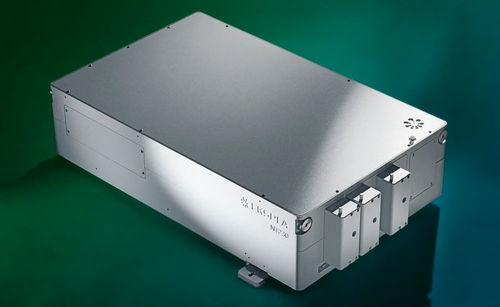

Pulsed laser system NT230

Q-switchedsolid-stategreen

The NT230 series is a high energy, broadly tunable DPSS laser system designed for advanced laboratory applications. This laser offers hands-free, no-gap tuning from 192 to 2600 nm in a single compact housing, integrating a diode-pumped Q-switched Nd:YAG laser and an optical parametric oscillator (OPO). With a 100 Hz repetition rate, the NT230 series is ideal for laser-induced fluorescence, flash photolysis, photobiology, metrology, and remote sensing. Its innovative diode-pumped design ensures maintenance-free operation and improved stability compared to flash-lamp pumped systems. The system can be controlled remotely via keypad or PC, with a user-friendly interface and backlit display for easy parameter adjustments, even when wearing laser safety eyewear.

Features

• Customers recognized reliability
• Two years warranty
• Integrates DPSS pump laser and OPO into a single housing
• Hands-free no-gap wavelength tuning from 192 to 2600 nm*
• Up to 15 mJ pulse energy from OPO
• Up to 100 Hz pulse repetition rate
• Up to 2 mJ output pulse energy in UV
• Less than 5 cm⁻¹ linewidth
• 2–5 ns pulse duration
• Electromechanical output shutters
• Transportation handles
• 355 nm & 1064 nm laser outputs
• 532 nm output (optional)
• Remote control via key pad or PC

* Automatic wavelength scan is programmable

Benefits

• Hands-free wavelength tuning – no need for physical intervention
• Wide tunability (192–2600 nm) and high pulse energy (up to 15 mJ) for investigating a broad range of materials
• High repetition rate (up to 100 Hz) and output power for fast data collection and intensive excitation
• Narrow linewidth (down to 3 cm⁻¹) and superior tuning resolution (1–2 cm⁻¹) for high quality spectra
• High integration level saves laboratory space
• Diode pumping reduces maintenance frequency
• Automatic electromechanical output shutters for safety
• User-friendly extendable handles for easy transportation and repositioning
• In-house design and manufacturing ensures reliable warranty and spares supply
• Multiple control interfaces: USB, RS232, LAN, WLAN for easy integration
• Attenuator and fiber coupling options for versatile experimental setups

Applications

• Laser-induced fluorescence
• Flash photolysis
• Photobiology
• Remote sensing
• Metrology
• Non-linear spectroscopy
• Photoacoustic imaging

Accessories and Optional Items

• -SH: Tuning range extension in UV (210–405 nm) by second harmonic generation
• -SF: Tuning range extension in 300–405 nm by sum-frequency generation
• -SH/SF: Combined SH and SF for 210–405 nm with maximum pulse energy
• -DUV: Deep UV option for 192–210 nm output
• -2H: 532 nm output
• -FC: Fiber coupled output in 300–2000 nm range
• -ATTN: Attenuator
• -SCU: Spectral filtering accessory for improved spectral purity
• -FWS: Fast wavelength scanning option

Specifications

• Wavelength range: 192–2600 nm (OPO: Signal 405–710 nm, Idler 710–2600 nm, SH/SF 210–405 nm, DUV 192–210 nm)
• Pulse energy: Up to 15 mJ (OPO), 1.8 mJ (SH/SF), 0.4 mJ (DUV)
• Pulse repetition rate: 50 Hz (NT230-50), 100 Hz (NT230-100)
• Pulse duration: 2–5 ns
• Linewidth: <5 cm⁻¹
• Minimal tuning step: 1 cm⁻¹ (signal/idler), 2 cm⁻¹ (SH/SF/DUV)
• Polarization: Signal (horizontal), Idler (vertical), SH/SF (horizontal), DUV (vertical)
• OPO beam divergence: <2 mrad
• Typical beam diameter: 5 mm
• Pump wavelength: 355 nm
• Typical pump pulse energy: 50 mJ (NT230-50), 35 mJ (NT230-100)
• Unit size (W × L × H): 451 × 705 × 172 mm
• Power supply size (W × L × H): 449 × 376 × 140 mm
• Umbilical length: 2.5 m
• Cooling: External chiller
• Room temperature: 18–30 °C
• Relative humidity: 20–80% (non-condensing)
• Power requirements: 100–240 V AC, single phase, 50/60 Hz
• Power consumption: <1.8 kW
• Cleanliness: Not worse than ISO Class 9
