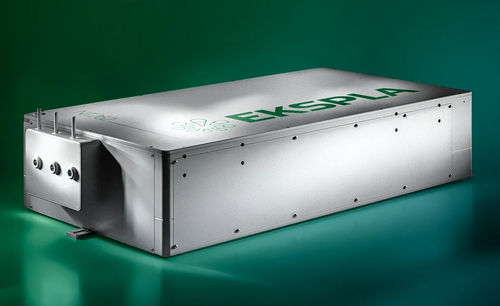

Pulsed laser system NT260

tunablehigh-powerfor spectroscopy

The NT260 series is a narrow linewidth 10 kHz tunable laser system designed for scientific applications requiring high spectral brightness and precision. It delivers hands-free, no gap tuning from 192 to 2600 nm at a 10 kHz rate from a single box, with up to 0.7 W output power and linewidths less than 3 cm⁻¹. This makes it ideal for demanding applications such as calibration of detectors and spectroradiometers, metrology, and gas spectroscopy. The system features pioneering patented Q-switched/mode-locked operation technology, integrated monitoring, fast wavelength scan, and a rugged monolithic frame for reliability and ease of transport. Flexible control is available via keypad or PC, and the system offers a two-year warranty.

Features

• Pioneering patented Q-switched/mode-locked operation technology
• Hands-free, no gap wavelength tuning in 192–2600 nm range
• 10 kHz repetition rate
• Up to 0.7 W output
• Down to 1.5 cm⁻¹ linewidth
• Integrated monitoring of pump and output power
• Integrated fast wavelength scan
• Monolithic rugged frame
• Transportation handles
• Flexible control from keypad or PC
• Two years warranty

Applications

• Metrology & equipment calibration
• Alignment of a hyperspectral camera
• Time-of-flight mass spectrometry (TOF)
• Semiconductor inspection
• Evaluation of optical filters
• Photoacoustic microscopy
• Laser-induced luminescence spectroscopy
• Environment monitoring, LIDAR

Description
NT262, a member of the NT260 series, is a unique narrow linewidth 10 kHz OPO. Its patented technology enables up to 0.7 W output in the 192–2600 nm range while maintaining <3 cm⁻¹ (typically <2 cm⁻¹ at most wavelengths) linewidth, highly beneficial for applications requiring narrow linewidth and high spectral brightness. The system is suitable for high-resolution applications such as calibration, metrology, and gas spectroscopy, as well as fluorescence and pump-probe experiments. High repetition rate and hands-free tuning facilitate fast and easy data collection. The system is highly stable, with excellent short and long-term energy and power stability, and a smaller M² value compared to traditional OPO systems. It is reliable due to a low generation threshold and easy operation, housed in a rugged, monolithic frame for high reliability and low maintenance.

Benefits

• Hands-free wavelength tuning – no physical intervention required
• High 10 kHz pulse repetition rate – fast data collection
• Narrow linewidth (~2x better than traditional OPO) – high resolution spectra
• Small M² beam parameter (~2x better than traditional OPO) – tight beam focusing
• Excellent stability (~2x better than traditional OPO) – fast data acquisition
• Lower generation threshold – increased reliability
• Motorized output shutters – increased safety
• Clean air purging for prolonged optics lifetime
• Wavelength set in nm and cm⁻¹ – easy experiment operation
• High tuning resolution 1-2 cm⁻¹ – high quality spectra
• Variety of control interfaces: USB, RS232, LAN, WLAN – easy integration
• PC control using text commands – simple control from any OS

Accessories and Optional Items

• -SH/SF: Tuning range extension in 210–405 nm by combining second harmonics and sum-frequency generator outputs
• -DUV: Deep UV option for 192–210 nm output
• -FC: Fiber coupled output in 350–2000 nm range
• -ATTN: Attenuator output in 210–2600 nm range
• -SCU: Spectral filtering accessory for improved spectral purity

Typical Performance Images

• Typical NT262 laser tuning curves in signal (405–710 nm), idler (710–2600 nm) ranges
• Typical NT262 laser output with –SH/SF option (210–405 nm)
• Typical NT262 laser output with –DUV option (192–210 nm)
• NT262 series laser beam profile at 450 nm (near and far field)

Characteristics / Technical Specifications

• Model: NT262 (NT260 series)
• Wavelength range: Signal: 405–710 nm; Idler: 710–2600 nm; SH/SF (optional): 210–405 nm; DUV (optional): 192–210 nm
• Output pulse energy/average power: OPO: 70 µJ / 700 mW; SH/SF (optional): 6 µJ / 60 mW
• Minimal tuning step: Signal/Idler: 1 cm⁻¹; SH/SF/DUV: 2 cm⁻¹
• Pulse duration: ~7 ns
• Linewidth: <3 cm⁻¹
• Typical beam diameter: 4.5 mm × 2.5 mm
• Beam pointing stability: ≤50 μrad RMS
• Polarization: Signal/Idler/SH/SF: horizontal; DUV: vertical
• Pump wavelength: 355 nm
• Typical pump pulse energy: 0.3 mJ
• Beam quality: Near Gaussian in near and far fields
• Beam divergence: <1.5 mrad
• Pulse energy stability (StdDev): <2.5%
• Pulse repetition rate: 10 kHz
• Nominal lifetime for pump diodes: 20,000 hours
• Typical warm-up time: 15 min
• Laser head size (W × L × H): 400 × 790 × 166 ±3 mm
• Power supply unit size (W × L × H): 553 × 510 × 529 ±3 mm
• Umbilical length: 3 m
• Cooling: Built-in chiller
• Clean air purge: Built-in
• Room temperature: 18–27 °C
• Ambient temperature stability: ±2 ºC
• Relative humidity: 20–80% (non-condensing)
• Power requirements: 100–240 V AC, single phase, 50/60 Hz
• Power consumption: <1 kW
• Cleanliness of the room: not worse than ISO Class 9
