Picosecond laser system PT501

tunablemid-infraredfor spectroscopy

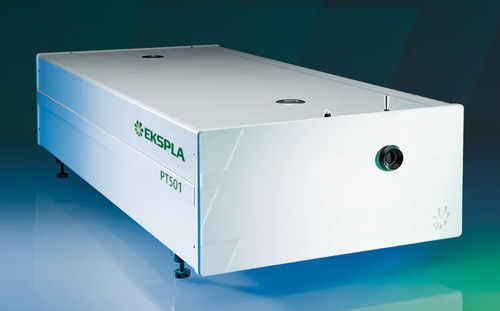

The PT501 series is a single housing mid-infrared tunable picosecond laser system that integrates a picosecond optical parametric oscillator (OPO) and a pump laser in a compact, robust frame. This integration shortens installation time, improves long-term stability, and reduces maintenance costs. Fast and fully automatic wavelength tuning is achieved via advanced microprocessor control, with tuning elements mounted on precise closed-loop micro-stepping motors and nonlinear crystal temperatures managed by precise thermo-controllers. No manual adjustment is required. The system can be controlled by a keypad or any controller running on any OS using REST API commands, with interfaces including USB, RS232, LAN, and optionally WLAN for easy integration.

Features

• Tuning range: 2300 – 16000 nm (4345 – 625 cm⁻¹)
• Hands-free tuning: motorized for the entire tuning range
• Linewidth: <4 cm⁻¹ in the entire tuning range
• Repetition rate: 100 Hz
• Air cooled – external water supply is not required
• Beam direction stability in the entire tuning range
• Single housing: integrates a pump laser and OPO in a single housing
• PC control via USB (virtual COM port), RS232, LAN using REST API commands
• Fast wavelength scan (sweep)

Applications

• Infrared spectroscopy
• SFG (sum frequency generation spectroscopy)

Communication Interfaces

• USB: virtual serial port, ASCII commands
• RS232: ASCII commands
• LAN: REST API
• WLAN: REST API (optional)

Available Models

• PT501: provides narrowband radiation with a linewidth < 4 cm⁻¹ in the entire tuning range (2300 – 16000 nm / 4345 – 625 cm⁻¹), repetition rate 100 Hz

Specifications

• Tuning range: 2300 – 16000 nm
• Output pulse energy: >200 µJ at 3500 nm, >50 µJ at 10000 nm
• Bandwidth: <4 cm⁻¹
• Pulse repetition rate: 100 Hz
• Tuning resolution: <0.5 cm⁻¹
• Typical beam size: ~4 mm
• Beam divergence: <3 mrad
• Beam pointing stability: ≤100 μrad rms
• Beam polarization: horizontal, >100:1
• Wavelength sweep: available
• Optical pulse jitter: <50 ps (StdDev.) internal triggering, ~3 ns (StdDev.) external triggering
• TRIG1 OUT pulse delay: Positive pulse with controllable delay, pulse width ~100 ns, default delay ~250 μs before optical pulse up to 10 ms
• Laser head size (L×W×H): ~520 × 1050 × 272 mm
• Power supply unit size (L×W×H): 450 × 450 × 140 mm
• Mains requirements: 100 – 240 V AC single phase, 47 – 63 Hz
• Power consumption: <0.5 kW
• Operating ambient temperature: 22 ±2 °C
• Relative humidity: 20 – 80 % (non-condensing)
• Cooling: air cooled
• Cleanness of the room: not worse than ISO Class 9
