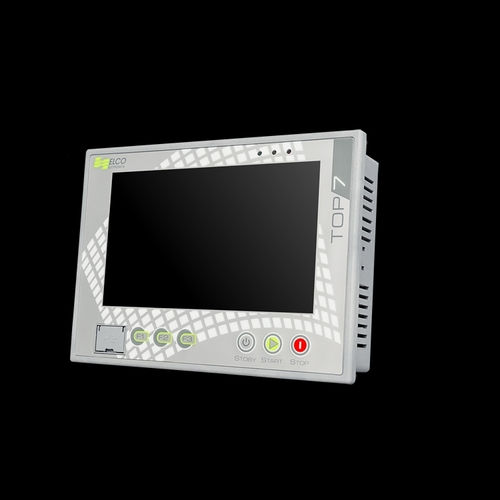

HMI with keyboard / panel-mount / 800 x 480 / programmable
TOP7

{{requestButtons}}

Characteristics

  • Interface:

    with keyboard

  • Mounting:

    panel-mount

  • Resolution:

    800 x 480

  • Other characteristics:

    programmable, USB, Ethernet, Modbus, CANopen

  • Applications:

    display, industrial, PLC, CNC, remote control

  • Screen size:

    6 in

Description

The PLC / CNC / HMI line TOP series is a true revolution in the concept of automation, incorporating the robustness and reliability of industrial PLC/CNC The integrated PLC / CNC / HMI TOP 7 is a modular, programmable and configuarble PLC. The system consists of 5 slots for inserting I/O cards and is based on a sophisticated communication bus that automatically recognises each inserted card, thereby addressing the available resources.MAIN FEATURES
> Modularity: 5 slots available and multiple combination possibilities
> Autodetecting Mode: automatic recognition of cards
> Remote assistance: remote control with VNC server


TECHNICAL FEATURES
> 24v power supply I A
> 7 "color display 800X480
> 6-key mechanical keyboard
> Industrial touchscreen resistive technology
> Polyester silk screen for industrial environments
> Ladder / ISO programming through serial / ethernet / USB port
> Clock / Dater
> 2-port CANOPEN fieldbus - 2 MODBUS ports (optional)
> Front USB port (1 USB on the back optional)
> Ethernet 1 Ethernet 10/100 Base - T port
> Fiber Optic 2 ports TX / Rx (optional)
> Extractable screw connectors (or optional spring-loaded
