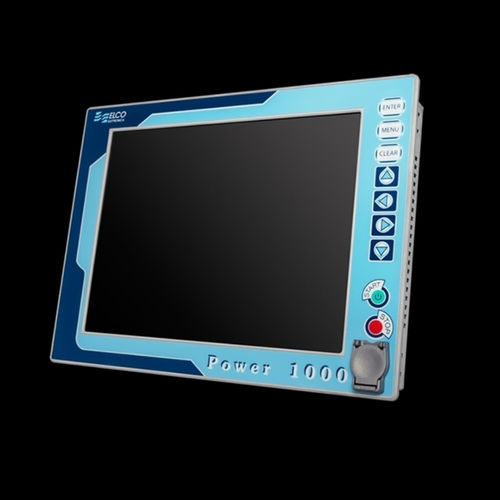

HMI with keyboard POWER 1000resistive touch screenpanel-mount640 x 480
Add to favorites
Compare this product
Characteristics
- Interface
- resistive touch screen, with keyboard
- Mounting
- panel-mount
- Resolution
- 640 x 480
- Other characteristics
- LCD, Ethernet, USB, RS422/RS485, Modbus, CANopen, CAN BUS
- Applications
- industrial, CAN bus
- Screen size
10.4 in
Description
The PLC / CNC / HMI POWER line integrates all the features of the line base by implementing a number of resources with higher performance.
TECHNICAL FEATURES
> 24V power supply 1 A
> Graphical LDC display 10.4 '' color 640x480 (integrated or remoted)
> 9-key mechanical keyboard
> Industrial touchscreen resistive technology
> Polyester silk screen for industrial environments
> Ladder / ISO programming via serial / USB port
DIMENSIONS
> Frontal H: 212 mm / L: 282 mm
> Depth P: 61 mm
RESOURCES
> 16 - 32 - 48 digital inputs 24V
> 16 - 32 - 48 digital outputs 24V 1A
> 2 - 4 - 6 - 8 encoder inputs NPN / PUSH PULL / LD 5/12 / 24V
> 2 - 4 - 6 - 8 analog outputs +/- 10V 16 BIT
> 2 - 4 - 6 - 8 pulse direction outputs 5V LD (up to 2 MHz)
> 2 - 4 - 6 - 8 analog inputs 0 / 10V or 4-20 mA or PT100 16 BIT
> 1 - 2 RS232
> 1 RS485 (MODBUS RTU)
> 1 ETHERNET 10/10 Mbit
> 1 - 2 CAN BUS CAN OPEN
