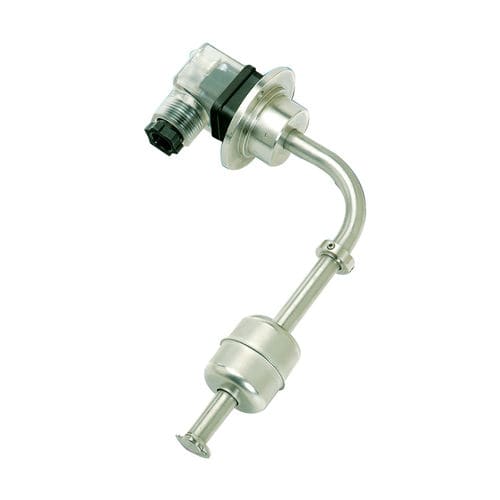

Magnetic float level switch LMMA1
for liquidsstainless steelbrass

Magnetic float level switch - LMMA1 - ELETTROTEC s.r.l. - for liquids / stainless steel / brass
Magnetic float level switch - LMMA1 - ELETTROTEC s.r.l. - for liquids / stainless steel / brass
Magnetic float level switch - LMMA1 - ELETTROTEC s.r.l. - for liquids / stainless steel / brass - image - 2
Add to favorites
Compare this product

Characteristics

Technology
magnetic float
Medium
for liquids
Material
stainless steel, brass
Mounting
flange, side-mount
Other characteristics
IP65
Process temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Description

Actuation point - LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO Mounting - Flange Ø 52 Switching capacity - LM1/LMM1 – 60W/VA / LM2 – 30W/VA Current - LM1/LMM1- 0,8A (resistive) / LM2 – 0,5A (resistive) Voltage - 220V – 50Hz Fluid specific gravity - 0.7 kg/dm3 Fluid viscosity - 150 cSt Size - Max. lenght 1500 mm
