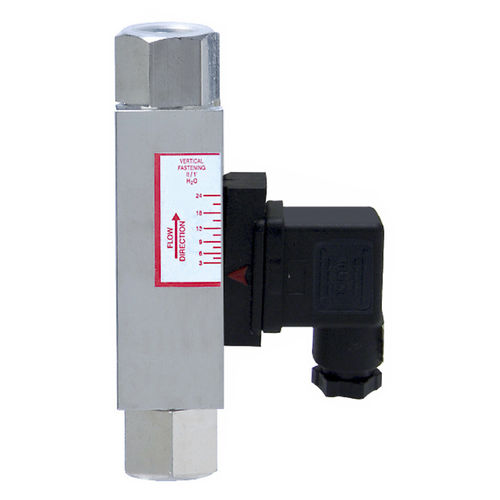

Piston flow switch IFE series

for liquidselectronicin-line

Adjustable electric flow switches Flow rate0,3…60 LPM H2O Materials Nickel-plated brass Sealing: NBR Max pressure 50 bar Operating temperature -10°C +80°C Intervention differential ca. 45% Electrical connection DIN 43650 – PG09 – IP65 Contact (dry) N/O Switching voltage DC: 20W / AC: 20VA Max voltage 220V – 50Hz Current 0,5A (resistive) Size IFE1 – 89x20x20 mm IFE2 – 93x22x22 mm IFE3 – 104x24x24 mm IFE4 – 115x28x28 mm IFE5 – 132x32x32 mm IFE6 – 157x45x45 mm Thread connection IFE1 – G1/8” IFE2 – G1/4” IFE3 – G3/8” IFE4 – G1/2” IFE5 – G3/4” IFE6 – G1” Mounting Vertical Options - -
