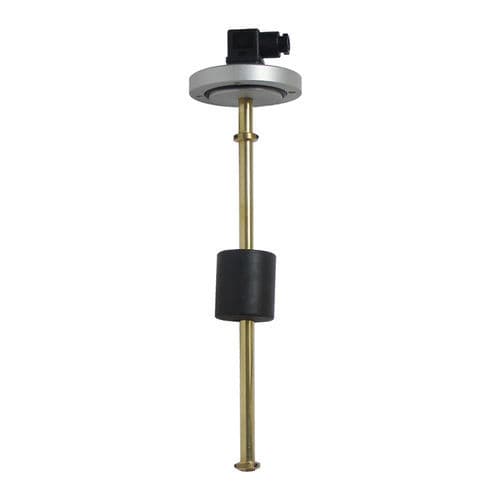

Float level sensor SLM1FA…CVS1 for liquids4-20 mAflange-mount
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Interface
- 4-20 mA
- Other characteristics
- flange-mount, IP65
- Level range
Max.: 1,000 mm
(39.37 in)Min.: 300 mm
(11.81 in)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
Level Sensors 4-20mA Output
MaterialsStem: brass Float: NBR Connection: anodized aluminium Gasket: NBR
Connection FA – Ø54 flange TA – G1 1/4” thread
Output 4-20mA
Signal converter CVS1 – Connector
Protection IP65 EN60529 – PG11
Power supply 24 Vdc ±10%
Fluid specific weight ³ 0.7
Fluid viscosity Max 150 cSt
Certifications and Approvals - -
Size Min length 300mm – Max length 1000mm
