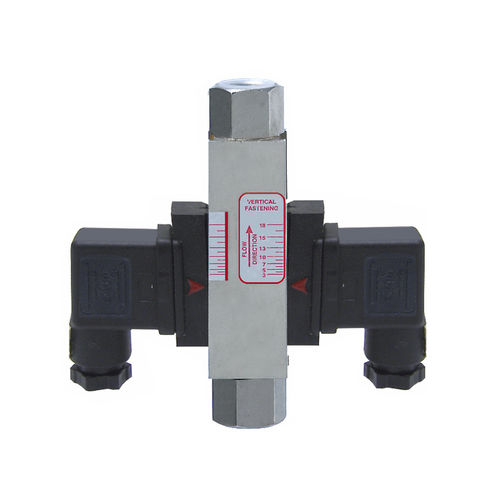

Piston flow switch IF2E seriesfor liquidsbrassvertical
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- for liquids
- Other characteristics
- brass, vertical, IP65
Description
Body material - Nickel plated brass
Max. operating voltage - 220 V – 50 Hz
Voltage intensity - 0.5 A (resistive)
Seal material - NBR
Contact - NO
Electrical connection - PG09
Electrical protection - IP65
Switching voltage in DC / AC - DC 20 W – AC 20 VA
Max. flow rate - 60 l/min. – H20
Max. pressure - 50 bar
Working temperature - -10°C to +80°C
Differential - ~ 45% flow rate
Threads - G1/8″ – G1/4″ – G3/8″ – G1/2″ -G3/4″ – G1″
Fastening - Vertical
