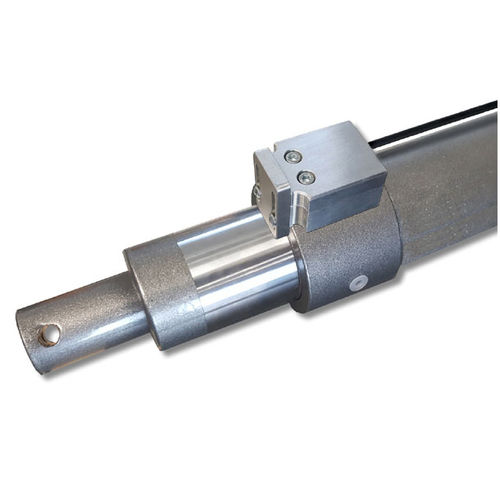

Linear position sensor MTM-Qcontactlessmagneticanalog output
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- contactless
- Technology
- magnetic
- Output signal
- analog output, DC output, with CANopen interface
- Protection class
- IP65, IP69K
- Applications
- for cylinders
- Other characteristics
- absolute, high-precision
- Measuring range
2,500 mm
(98.43 in)- Supply voltage
Max.: 30 V
Min.: 10 V
- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
The measuring system MTM-Q is based on the physical principle of magnetism and is used for high-precision detection of position, length and / or speed on fixed round profiles, e.g. non-rotating piston rods in hydraulic cylinders. The contactless and wear-free single-track measuring system as quasi-absolute version:
- Contactless, wear-free measuring principle
- Very robust and proven measuring technology
- Insensitive to contamination
- High shock and vibration resistance
- Interface: Analog output or CANopen
- Power supply: 10 ... 30 VDC
Catalogs
Exhibitions
Meet this supplier at the following exhibition(s):
Other ELGO Electronic products
Position Detection in Hydraulic Cylinders
