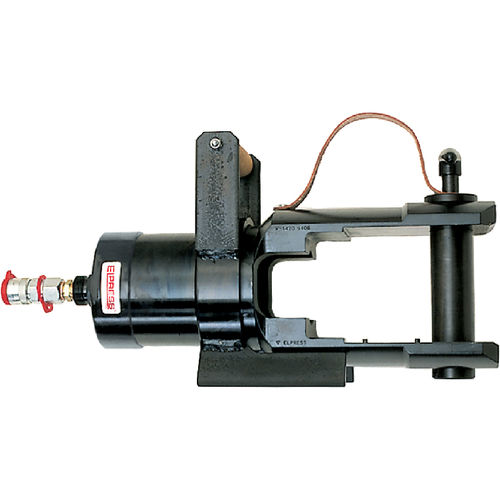

Hydraulic crimping tool V1470

pneumatic

fitted with safety device in the form of a protective cover and with quick coupler working pressure 63 MPa (630 bar) crimp force 400 kN supplied in plywood box Tested and certified crimp head for crimping Cu-terminals 500-1000 mm², Al-terminals 800-1200 mm², C-sleeves 245-600 mm². Used in conjunction with Elpress foot pump P4000 or battery and mains powered pump PS710. Delivery box: Plywood box Crimp geometries: Punch, Hexagonal, Oval Safety device: Protective cover Working pressure (MPa): 63 Quick connector: Yes AWG/MCM Stranded Al: 1600 - 2500 MCM AWG/MCM Cu: 1000 - 2000 MCM mm² Stranded Al: 800-1200 mm² Cu: 500-1000 Crimp range Cu-terminals min (mm²): 500 Crimp range Cu-terminals max (mm²): 1000 Crimp range C-connectors min (mm²): 150 Crimp range C-connectors max (mm²): 300 Crimp range Al-terminals min (mm²): 800 Crimp range Al-terminals max (mm²): 1200
