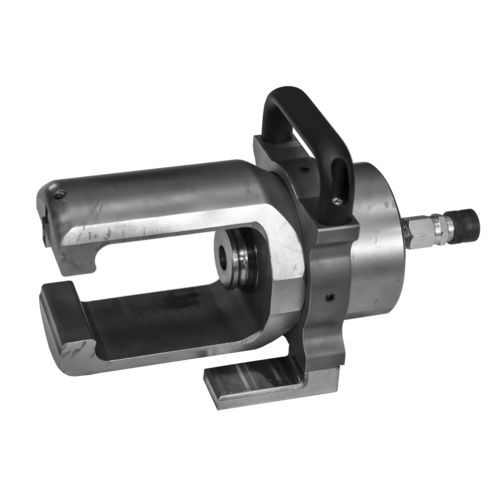

Hydraulic crimping head DV350

Powerful 35 tons crimp head with Elpress DUAL-system Crimps aluminium and copper up to 1000 mm² DUAL crimp dies for crimping of copper 240-400 mm² Crimp die for crimping of copper 400-1000 mm² Matrix and punch for crimping of aluminium 300-1000 mm² Delivered fixed on a solid foot with a handle The head is used together with the electrically driven pump PS710 (the battery powered version, PS710E, is also available) Delivery box: Plywood box Crimp geometries: Punch, Dual, Hexagonal, Oval Working pressure (MPa): 630 Quick connector: Yes AWG/MCM Stranded Al: 550 - 2000 MCM AWG/MCM Solid Al: 6 AWG - 550 MCM AWG/MCM Cu: 700 - 2000 MCM mm² Stranded Al: 300-1000 mm² Solid Al: 16-300 mm² Cu: 400-1000 Crimp range Cu-terminals min (mm²): 400 Crimp range Cu-terminals max (mm²): 1000 Crimp range C-connectors min (mm²): 95 Crimp range C-connectors max (mm²): 300 Crimp range Al-terminals min (mm²): 300 Crimp range Al-terminals max (mm²): 1000
