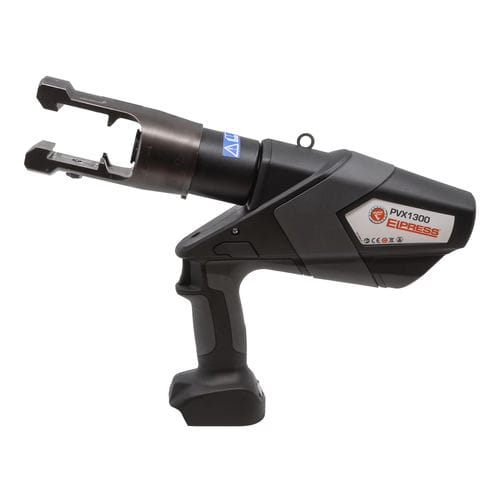

Hydraulic crimping tool PVX1300-WOBC

ergonomic design swivel fork crimp force control using pressure monitoring DUAL crimp technology fast-forward feed display with information about the tool and service intervals crimp monitoring with warning lamp (LED) 2 year warranty Delivered without Battery/Charger Battery-powered crimp gun for contact crimping Cu terminals, type KRF/KSF 10-400 mm², Al terminals 16-400 mm² (-240 solid), C sleeves 6/6-120/120 mm². Delivery box: Plastic case Working temperature, Min (°C): -20 Working temperature, Max (°C): 40 Crimp geometries: Punch, Dual, Hexagonal, Oval Pressure monitoring via display: Yes Charge time (min): 15 AWG/MCM Stranded Al: 6 AWG - 700 MCM AWG/MCM Solid Al: 6 AWG - 450 MCM AWG/MCM Cu: 8 AWG - 700 MCM mm² Stranded Al: 16-400 mm² Solid Al: 16-240 mm² Cu: 10-400 mm² KR/KS, KRF/KSF: 10-400 mm² KRT/KST: 10-400 mm² KRD/KSD: 10-400 Crimp range Cu-terminals min (mm²): 10 Crimp range Cu-terminals max (mm²): 400 Crimp range C-connectors min (mm²): 6 Crimp range C-connectors max (mm²): 120 Crimp range Al-terminals min (mm²): 16 Crimp range Al-terminals max (mm²): 400
