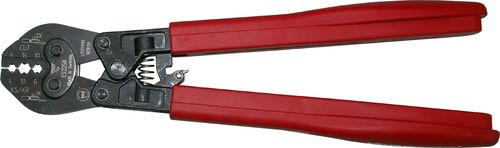

Manual crimping tool ES2258for connectors
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Applications
- for connectors
- Crimp profile
Min.: 6 mm²
(0.009 in²)Max.: 16 mm²
(0.025 in²)
Description
ergonomic handles facilitate installation
scissor movement for optimal access in confined spaces
locking function which only releases once the crimp is complete
hexagonal crimping with clearly marked crimping positions
possibility of adjustment at calibration after long-term use
Tested and certified mechanical hand-held tool for crimping Cu-terminals, type CUT 6-16 mm² and KR/KS 4-10 mm².
Ratchet function that does not trigger until completed crimp: Yes
Crimp geometries: Hexagonal
AWG/MCM Cu: 12 - 6 AWG
mm² Cu: 6-16
mm² KR/KS, KRF/KSF: 4-10
Through conductor, Min (mm²): 6
Through conductor, Max (mm²): 16
