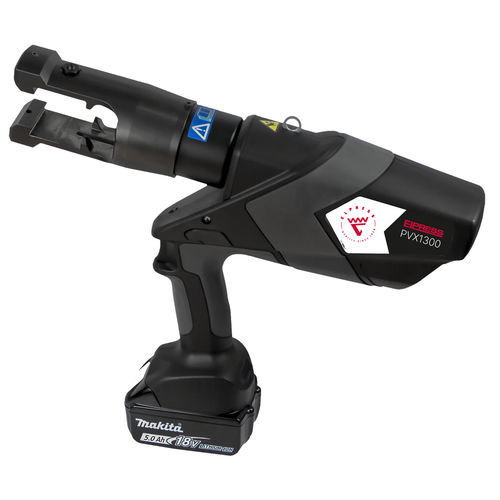

Hydraulic crimping tool PVX1300DB

hand

ergonomic design swivel fork crimp force control using pressure monitoring DUAL crimp technology fast-forward feed display with information about the tool and service intervals crimp monitoring with warning lamp (LED) 2 year warranty Battery-powered crimp gun for contact crimping Cu terminals, type KRF/KSF 10-400 mm², Al terminals 16-400 mm² (-240 solid), C sleeves 6/6-120/120 mm². Supplied with two batteries. Delivery box: Plastic case Working temperature, Min (°C): -20 Working temperature, Max (°C): 40 Crimp geometries: Punch, Dual, Hexagonal, Oval Safety device: Closed chassis Pressure monitoring via display: Yes Work light: Yes Charger: Li-ion & Ni-MH 7.2-18V Charge time (min): 15 Battery: Li-Ion Makita, 5,0Ah, 18V No. of batteries: 2 Crimp time (s): 4-12, depending on size Crimps/charge: 60-120 depending on size and temperature AWG/MCM Stranded Al: 6 AWG - 700 MCM AWG/MCM Solid Al: 6 AWG - 450 MCM AWG/MCM Cu: 8 AWG - 700 MCM mm² Stranded Al: 16-400 mm² Solid Al: 16-240 mm² Cu: 10-400 Crimp range Cu-terminals min (mm²): 10 Crimp range Cu-terminals max (mm²): 400 Crimp range C-connectors min (mm²): 6x2 Crimp range C-connectors max (mm²): 120x2 Crimp range Al-terminals min (mm²): 16 Crimp range Al-terminals max (mm²): 400
