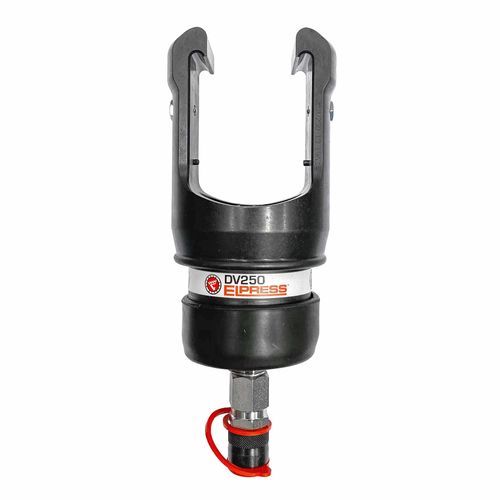

Hydraulic crimping tool DV250

manual

crimp head with patented DUAL technology that gives optimised hexagonal crimping + a certain amount of indented crimping in two integrated steps fitted with safety device in the form of a protective cover working pressure 63 MPa (630 bar) crimp force 250 kN (25 tonnes) light and versatile steel crimp head Crimp head for contact crimping Cu terminals, type KRF/KSF 120-400 mm². Used in conjunction with Elpress foot pump P4000 or battery and mains powered pump PS710. Crimp geometries: Punch, Dual, Hexagonal, Oval Working pressure (MPa): 63 AWG/MCM Stranded Al: 6 AWG - 1250 MCM AWG/MCM Solid Al: 6 AWG - 550 MCM AWG/MCM Cu: 8 AWG - 1600 MCM mm² Stranded Al: 16-630 mm² Solid Al: 16-300 mm² Cu: 10-800 Crimp range Cu-terminals min (mm²): 10 Crimp range Cu-terminals max (mm²): 800 Crimp range C-connectors min (mm²): 6 Crimp range C-connectors max (mm²): 300 Crimp range Al-terminals min (mm²): 16 Crimp range Al-terminals max (mm²): 630
