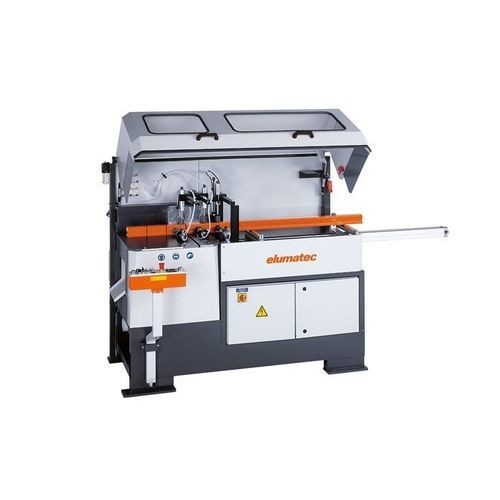

Miter saw SA 142/37circularfor aluminumfor profiles
Add to favorites
Compare this product
Characteristics
- Technology
- circular, miter
- Treated material
- for aluminum
- Applications
- for profiles
- Operational mode
- automatic
- Other characteristics
- with tilting blade
- Circular saw blade diameter
380 mm
(15 in)
Description
Overview
Applications
Options
Variant SA 142/38
Technical data
- Automatic saw designed for high-volume cutting of aluminium profiles used in window fabrication and industrial profile production
- Material infeed cycles protect profile surfaces via a profile lifting system on the support and locating faces
- Selectable one-, two- or three-stroke feed via a selector switch for flexible length feeding
- Optional tilting saw unit enables angled cuts up to 45°
- Large cutting range to accommodate wide profiles; supplied with saw blade as standard
Applications
- Mass production of window and door frames
- Aluminium extrusion workshops and profile processors
- Industrial fabrication lines requiring repetitive precision cuts
Options
- Manual cutting length adjustment with digital display E 111
- Hydro-pneumatic saw feed for smoother cutting cycles
- Extraction unit for chip and dust removal
- Roller conveyor integration for inline handling
- Additional saw blades for different materials or tooth geometries
- High-performance cutting fluid
- Intermediate angle setting with hand wheel and digital display E 111
- Clamping systems for multi-part clamping and for parts under 5 mm
Variant SA 142/38
- Based on SA 142/37 with kerf spreading (only for 90° cuts)
- See cutting diagram for variant cutting range
Technical data
- Pivoting range: 90° to 45° continuously adjustable (optional)
- Saw blade diameter: 500 mm
- Saw blade speed: 2,800 rpm
- Power supply: 230/400 V, 3~, 50 Hz
- Power output: 5.5 kW
- Compressed air supply: 7 bar
- Air consumption per working cycle: 50 l (without spraying) / 64 l (with spraying)
- Overall dimensions (L x D x H): 2,850 mm x 1,400 mm x 1,580 mm
- Weight: 770 kg
- Feed distance per cycle: 5–600 mm (up to three cycles possible)
