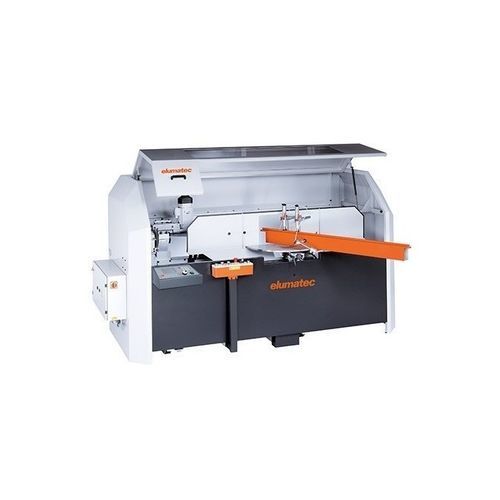

Variable-angle notching machine AKS 134/00manualhydraulicelectric
Add to favorites
Compare this product
Characteristics
- Type
- variable-angle
- Operation
- manual, hydraulic, electric, pneumatic
- Other characteristics
- automatic
- Motor power
3 kW
(4.08 hp)- Weight
1,250 kg
(2,755.77828 lb)
Description
Overview
NOTCHING SAW AKS 134/10
See AKS 134/00, however:
Options
Technical specifications
- Variable notching possibilities for mullion and transom combinations, e.g. for curtain walls, conservatories, sky lights, and special designs
- Precise and safe notching is ensured because the workpiece is fixed and only the saw units move
- Both saw units are adjusted in height simultaneously by means of a hand wheel (analogue display on the hand wheel)
- The cutting depth is set using an analogue display
- Manual angle adjustment of the saw blades using a digital display of the tilting angles
- Support table with compound slide and pivoting back fence is manually adjustable for optimal use of the cutting range
- The angle of the pivoting back fence is shown on a digital display
- Horizontal and vertical profile clamping
- Automatic working cycle at a 90° pivoting angle (two-hand control when cutting special angles)
- Hydro-pneumatic saw feed
NOTCHING SAW AKS 134/10
See AKS 134/00, however:
- Equipped with a 4-axis controller for automatic adjustment of the horizontal and vertical saw blades for angle cutting, as well as for height adjustment and notching depth
- Values from design drawings can be entered directly via the keyboard
Options
- Laser indicator for cutting line
- Noise protection package
- Saw blades
- High performance cutting fluid
Technical specifications
- Lower saw unit (vertical):
- Saw blade diameter: 550 mm
- Tilting range: from 45° forwards to 60° towards the rear
- Max. cutting height: 210 mm
- Power supply: 230/400 V, 3~, 50 Hz
- Power output: 3 kW with motor brake
- Saw blade speed: 2,800 rpm
- Manual tilting angle adjustment with digital display (standard)
- Upper saw unit (horizontal):
- Saw blade diameter: 500 mm
- Tilting range: from 55° downwards up to 60° upwards
- Notching depth, max.: 190 mm
- Power supply: 230/400 V, 3~, 50 Hz
- Power output: 3 kW with motor brake
- Saw blade speed: 2,800 rpm
- Manual tilting angle adjustment with digital display (standard)
- Travel: 830 mm max.
- Support table with working height of 990 mm:
- Pivoting range from 30° left to 30° right, home position 0°
- Pivoting range manual with digital display
- Compressed air supply: 7 bar
- Air consumption per working cycle: 35 l without spraying, 45 l with spraying
- Length: 3,000 mm
- Depth: 1,420 mm
- Height: 1,600 mm
- Weight: 1,250 kg
