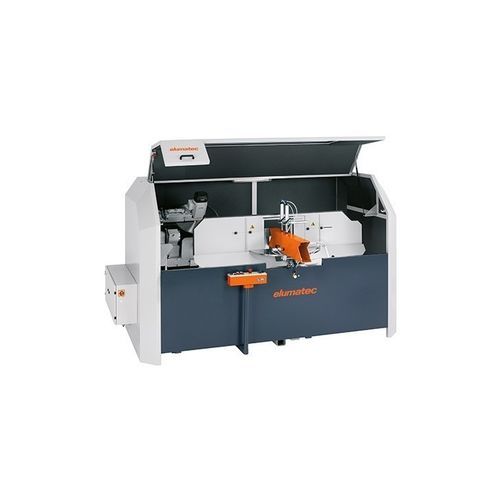

Electric cut-off saw AKS 134/64hydraulicpneumaticfor metals
Add to favorites
Compare this product
Characteristics
- Power source
- electric, hydraulic, pneumatic
- Material to be cut
- for metals
- Circular saw blade diameter
500 mm, 650 mm
(20 in, 26 in)
Description
Product overview
AKS 134/65 variant
See AKS 134/64, however:
Options
Technical specifications
- Notching saw designed for machining aluminium profiles with a very large cutting range
- Suitable for curtain wall construction, conservatories and special structural designs
- Machining performed with moving saw units while the profile remains stationary for high positional accuracy and reduced footprint
- Wide stop plate allows clamping of several profiles simultaneously
- Support table with compound slide and pivoting fence adjustable manually to optimise use of the cutting range
- Horizontal and vertical profile clamping
- Automatic working cycle at 90° pivoting angle (two‑hand control for special angles)
- Hydro‑pneumatic saw feed and minimum‑volume lubrication for saw blades
AKS 134/65 variant
See AKS 134/64, however:
- Equipped with a 4‑axis controller for automatic adjustment of horizontal and vertical saw blades, cut height and notching depth
- Values from design drawings can be entered directly via the keyboard
Options
- Laser indicator for cutting line
- Noise protection package
- Saw blades
- High‑performance cutting fluid
Technical specifications
- Lower saw unit (vertical):
- Saw blade diameter: 650 mm
- Tilting angle max. 45° forward and 55° backward; home position: vertical saw blade
- Max. cutting height: 260 mm at 90°; 187 mm at 135°; 130 mm at 30°
- Power supply: 230/400 V, 3~, 50 Hz
- Motor power: 3 kW with motor brake
- Saw blade speed: 1,400 rpm
- Upper saw unit (horizontal):
- Saw blade diameter: 500 mm
- Tilting angle max. 55° downwards and 60° upwards; home position: horizontal saw blade
- Notching depth, max.: 190 mm
- Power supply: 230/400 V, 3~, 50 Hz
- Motor power: 3 kW with motor brake
- Saw blade speed: 2,710 rpm
- Travel: 950 mm
- Support table (working height 990 mm):
- Pivoting range: 30° left to 30° right; home position: 0°
- Manual pivoting with digital display
- Compressed air supply: 7 bar
- Air consumption per working cycle: 35 l without spraying, 45 l with spraying
- Overall dimensions (L x D x H): 3,000 x 1,570 x 1,770 mm; Weight: 1,400 kg
