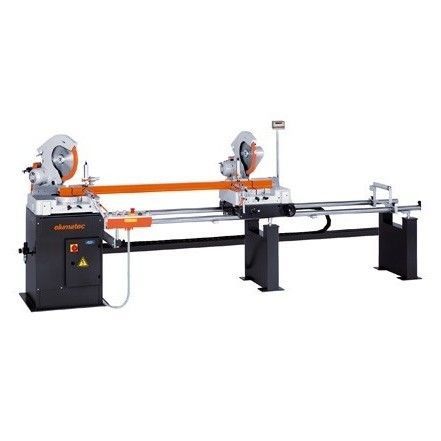

PVC double-head miter saw DG 79
for aluminumfor profilescompound angle

PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 2
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 3
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 4
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 5
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 6
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 7
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 8
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 9
PVC double-head miter saw - DG 79 - ELUMATEC - for aluminum / for profiles / compound angle - image - 10
Add to favorites
Compare this product

Characteristics

Treated material
for aluminum, for PVC
Other characteristics
for profiles, compound angle

Description

Overview
  • Solid cast construction with integrated turntable provides stable profile support for length cutting with angular accuracy
  • Saw heads pivot continuously from 0° to 45° left and right for external and internal dimension cuts
  • Vertical and horizontal pneumatic material clamps ensure reliable profile fixation
  • Supplied with saw blades as standard
  • Equipped with digital display E 111 as standard
  • Pulsed / dosed coolant system for controlled lubrication


Cutting length variants
  • 3,000 mm
  • 4,500 mm
  • 6,000 mm


Options
  • Workpiece supports
  • Transom stop
  • Extraction system
  • Additional material clamping units
  • Roller conveyors
  • Alternative saw blades
  • High-performance cutting fluid


Controller variants
  • Manual cutting length adjustment with digital display E 111
  • Positioning control E 355


Technical specifications
  • Minimum cutting length at 90°: 520 mm
  • Minimum cutting length pivoted at 45°: 520 mm
  • Positive location points at 15°, 30° and 45°
  • Pivoting range: 0°–45° continuously adjustable
  • Hydro-pneumatic saw feed
  • Cutting range: see cutting diagram
  • Saw blade diameter: 380 mm
  • Saw blade speed: 2,800 rpm
  • Power supply: 230/400 V, 3~, 50 Hz
  • Power output per motor: 3 kW
  • Compressed air supply: 7 bar
