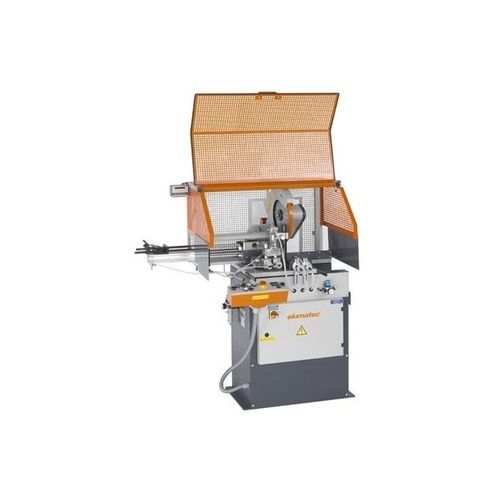

Electric cut-off saw SA 73/36for metals
Add to favorites
Compare this product
Characteristics
- Power source
- electric
- Material to be cut
- for metals
- Circular saw blade diameter
380 mm
(15 in)
Description
Product overview
Options
Characteristics / technical specifications
- Suitable for high-volume cutting of aluminium profiles for window manufacturing and industrial applications
- Material infeed (cycling) protects the surface of the workpiece by means of a single-stage profile lifting system
- One, two or three-stroke feed can be selected using a selector switch
- Reliable material feed using two horizontal clamping cylinders
- Automatic machine shut-down at the end of the profile
- Pulsed coolant system
- Equipped with saw blade as standard
- Digital display as standard
Options
- Extraction unit
- Roller conveyor
- Saw blades
- High performance cutting fluid
Characteristics / technical specifications
- Cutting range: 150 x 110 mm
- Saw blade diameter: 380 mm
- Saw blade speed: 2,800 rpm
- Power supply: 230/400 V, 3~, 50 Hz
- Power output: 3 kW
- Compressed air supply: 7 bar
- Air consumption per working cycle: 19 l without spraying, 31 l with spraying
- Dimensions (L x D x H): 1,500 mm x 1,100 mm x 1,550 mm; Weight: 290 kg
- Feed distance per cycle: 5 – 250 mm (up to three cycles possible)
