Aluminum double-head miter saw DG 102-P

for profilesCNCautomatic

Overview

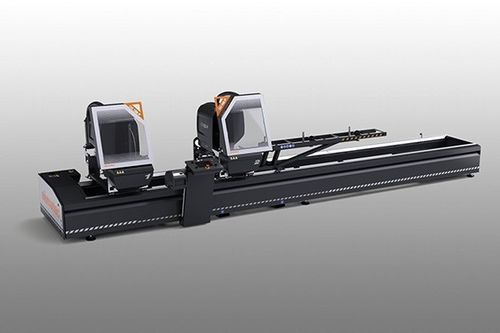

Twin-head electronic cutting-off machine with automatic traverse of the moving cutting head driven by a brushless motor under numerical/CNC control. Pneumatic angular setting from 90° to 22°30' (external) in two fixed positions or optional mechanical adjustment for intermediate angles. Hydropneumatic blade feed with adjustable feed rate.

Loading and unloading

• Roller conveyor on the movable saw unit for standard loading and unloading.
• Optional additional clamping device on the roller conveyor to secure the remaining bar.
• Optional profile height measuring device for automatic correction of the cutting dimension according to actual profile dimensions.

Control system

• Pedestal-mounted control panel connected to the machine bed; positionable individually.
• Equipped with the elumatec HMI with 7-inch touchscreen display.
• Supports single cuts and automatic mode with cutting lists; import of .dgx cutting lists supported.

Intermediate tilting adjustment

• Standard version provides preset cuts at 45° and 22°30' by mechanical end stops.
• Optional manual handwheel system allows tilting to any intermediate angle for out-of-square cuts.

Profile clamping

• Reliable, precise clamping using two horizontal pneumatic clamping cylinders.
• Optional vertical clamping configuration available when required.
• Manually positionable additional clamp holds the remaining piece during cutting.

Protective hoods for sawing units

• Two automatic protective hoods on the sawing units protect the processing area.
• Hoods made of scratch-resistant polycarbonate open and close automatically according to cutting cycles.

Technical data (summary)
Machine characteristics:

• Model: DG 102-P
• Machine type: Electronic twin-head cutting-off machine with moving cutting head
• Drive: Brushless motor with numerical/CNC control
• X axis electronic control: 1000
• X axis positioning speed: 2000 m/min
• Mobile head absolute magnetic strip position reading: 3000
• Angular setting: pneumatic from 90° to 22°30' (two fixed positions); optional mechanical adjustment for intermediate angles
• Blade feed: hydropneumatic with adjustable feed rate
• Control HMI: elumatec 7-inch touchscreen
• Profile clamping: two horizontal pneumatic clamps; optional vertical clamping system
• Loading/unloading: roller conveyor on movable saw unit; optional additional clamping device and profile height measuring device
• Safety: pneumatically-operated front local protection; automatic protective polycarbonate hoods
• Functions: single cuts, intermediate angle cuts, cyclical cuts from lists, extended/short/angle cuts, semi-automatic thrust cuts, import .dgx cutting lists

Safety and maintenance

• Minimal oil diffusion lubrication system included.
• Preparation for automatic start-up of external exhauster.
• Options for swarf extraction and removable collection drawers depending on configuration.
