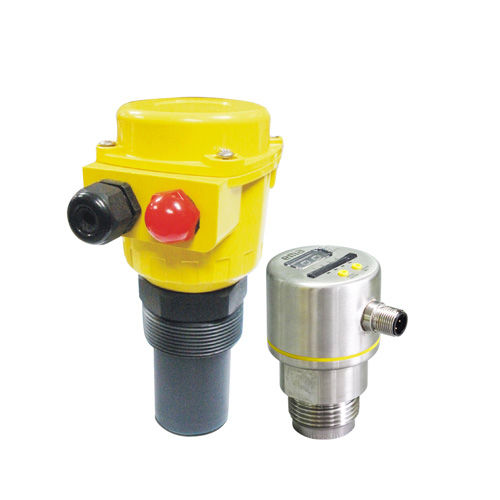

Ultrasonic level sensor SRT10liquidanalogfor small tanks
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Medium
- liquid
- Interface
- analog
- Applications
- for small tanks
- Level range
Max.: 8 m
(26'02" )Min.: 3 m
(9'10" )- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
For liquid, powder, small bulks and flat surface materials
Non-contact and continuous measurement
Sensing materials: Liquids
Adopts temperature compensation technique on speed & frequency
Independent of changing process conditions
- Density
- Waves
- Foam
Dual outputs OUTPUT 1 & OUTPUT 2 (Analogue, Switching)
Anti-corrosive type is suitable for volatile liquids or vapors
Mini type is designed for small tanks within 3 meters
Technical data
• Min resolution: 1mm
• Accuracy: ±0.1%
• Frequency: Standard type 50KHz, Mini type 100KHz
• Housing material: Standa
