Not specified palletising system INFINITYPALLET600

automaticmodularfor heavy loads

Overview

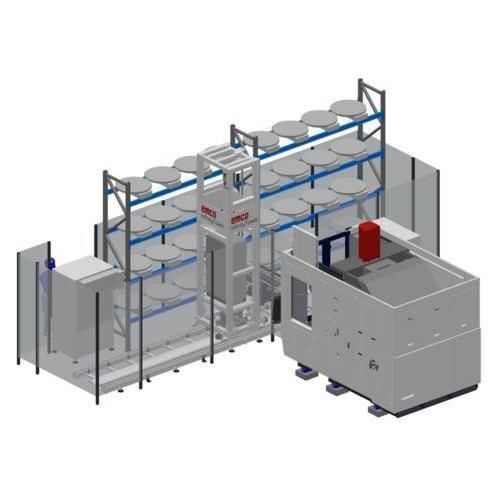

EMCO InfinityPallet600 is a standard palletising automation system for pallet changing on UMILL CNC milling machines. Designed for flexible, scalable integration, it handles medium to large components while enabling extended autonomous operation and simplified expansion.

Key features

• Universal design: supports pallets 600 x 600 mm or larger for diverse component sizes.
• Load capacity: up to 800 kg per pallet for medium to heavy parts.
• High autonomy: standard configuration includes 6 pallet positions to maximise unattended machining time.
• InfinityLine scalability: modular concept for long-term capacity planning and growth.
• Modular expansion: integrated guide for power and data transmission allows adding pallet modules without extensive rewiring.
• Additional capacity: more pallet positions can be integrated to increase storage beyond the standard six.

Product description
Standard automation solution for pallet changing on UMILL milling machines. The system combines a universal pallet interface with an integrated power and data guide, enabling straightforward, cost-effective expansion of the handling area and pallet storage. It is suitable for high-mix and series production where flexible loading and long autonomous cycles are required.

Technical specifications

• Model: InfinityPallet600
• Manufacturer: EMCO
• Compatible pallet dimensions: 600 x 600 mm or larger
• Maximum payload per pallet: 800 kg
• Standard pallet positions: 6
• Scalability: InfinityLine modular concept for expansion
• Expansion interface: integrated guide for power supply and data transmission
• Intended use: pallet changing / palletising for UMILL CNC milling machines
• Compatible machines (indicative): UMILL 630, UMILL 750, UMILL 1000
