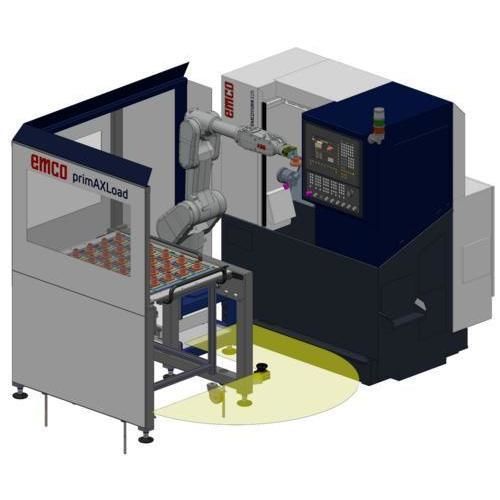

Machine tool integrated loader PRIMAXLOAD-TURN

Product description
primAXLoad-TURN by EMCO is an entry-level automation system designed to optimise component handling on CNC turning and milling machines. Its modular, adaptable design enables a fast, cost-effective transition to semi-autonomous production and helps reduce setup times while maximising spindle running time.

Equipment / Highlights

• Simple, flexible component handling with adaptable blister
• Base adaptable to a wide range of geometries and weight classes
• Central blister in Euro pallet format 1200 x 800 mm
• Blister/mould capacity up to 180 kg total
• Standard robot payload: 10 kg (standard pneumatic gripper)
• Flexible loading: manual, transport trolley or electric pallet truck
• Designed for easy integration into existing production logistics

Technical specifications

• Application: component handling for CNC lathes and milling machines
• Design: modular and adaptable for different geometries and weight classes
• Automation level: entry-level solution for semi-autonomous/unmanned production
• Central blister: Euro pallet format 1200 x 800 mm
• Mould/blister capacity: up to 180 kg total
• Robot payload (standard): 10 kg
• Loading options: manual loading, transport trolley, electric pallet truck
• Benefits: reduces setup times and increases spindle running time; quick, cost-effective implementation
