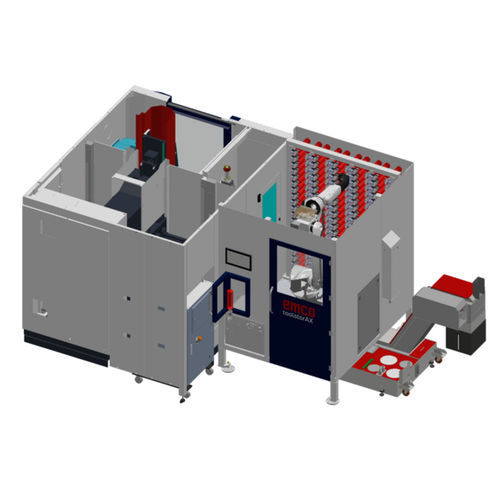

Tool storage magazine TOOLSTORAX

Product description
With toolstorAX, you can take your production to a new level of autonomy and flexibility. This robotics-based auxiliary tool magazine was developed specifically for the high-end machining centers of the UMILL 630, 750, and 1000 series as well as the MAXXMILL 630 and 750. Whether you are manufacturing individual parts or complex series, the toolstorAX ensures that your machine always has the right tool — fully automatic, scalable, and efficient. Coming soon: An upgrade to HSK100 is already in the works!

Equipment

• Large capacity with secure parking for up to 200 tools
• Powerful handling of HSK63 chucks
• Designed for tool dimensions up to a maximum of Ø 80 x 350 mm
• Permissible tool weight up to 8 kg
• Intelligent robotics for fast and reliable tool management
• Integrated cleaning station for maximum cleanliness in the process
• Integrated setup station for constant operational readiness
• High scalability thanks to the modular design of the toolstorAX
• Expansion stage #1 with 160 additional tool slots
• Expansion stage #2 with an additional 120 tool slots

Technical specifications

• Product name: toolstorAX
• Designed for: UMILL 630, UMILL 750, UMILL 1000 series and MAXXMILL 630 and 750
• Tool magazine capacity: up to 200 tools (base configuration)
• Expansion options: +160 tool slots (Expansion stage #1), +120 tool slots (Expansion stage #2)
• Tool holder compatibility: HSK63 (upgrade to HSK100 planned)
• Max. supported tool dimensions: Ø 80 x 350 mm
• Max. permissible tool weight: 8 kg
• Features: robotics-based handling, integrated cleaning station, integrated setup station, modular design for high scalability
