Pallet storage tower INFINITY

for warehouseverticalmodular

Overview

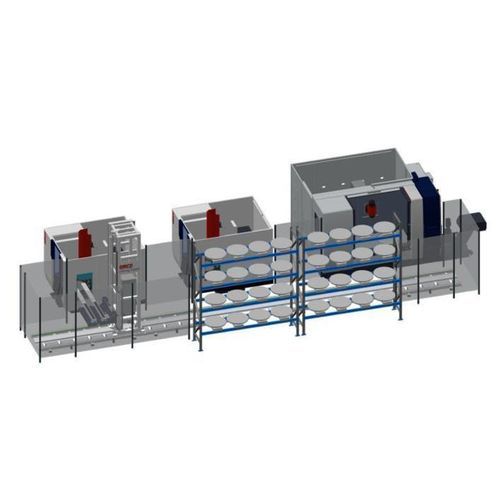

The infinityTower links multiple production machines to a central pallet handling system. It supports different types of milling and machining centres and handles pallet sizes from 600 x 600 mm upward. Clamping devices and raw material pallets can be temporarily stored in the flexible pallet warehouse.

Highlights of the tower

• Universal handling of pallets measuring 600 x 600 mm or larger
• High payload capacity up to 800 kg per pallet
• Connection of multiple machines via a single automation system
• Reduced investment costs per machine through shared handling infrastructure
• Manual setup station included in the basic scope for flexible setup
• Setup station configurable for process-specific optimization
• InfinityLine concept enables modular scalability of travel range
• Central rail technology with integrated power and data rails
• Easy integration of additional machines without extensive rewiring
• Expandable system architecture for future capacity increases

Solutions for machine automation
AX systems convert CNC turning and milling machines into fully automated production cells. From robot cells to pallet exchange and automated workpiece handling, the system addresses automation tasks for linked machines and production cells, enabling continuous, unattended operation cycles.

Technical specifications

• Supported pallet sizes: from 600 x 600 mm and larger
• Maximum payload per pallet: up to 800 kg
• Central pallet handling system for connecting multiple machines
• Manual setup station: included in the basic scope (flexible and adaptable)
• Modular InfinityLine concept for scalable travel range
• Central rail technology with integrated power and data rails
• Temporary storage for clamping devices and raw material pallets in the flexible warehouse
• System architecture designed for easy expansion and integration of additional machines
