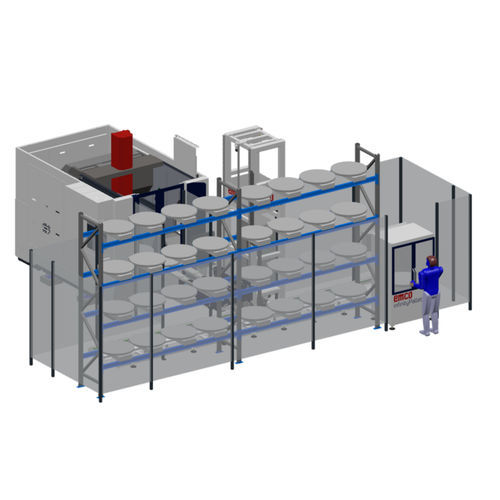

Robotized automation platform INFINITYPORTAL

Highlights

• Links multiple lathes equipped with bar feeders into a single automation concept
• Finished parts removed by the EMCO component catcher can be routed to downstream processes or palletized as finished parts

Equipment

• Universal application for a wide variety of components
• Standard configuration with servo-driven axes and a part gripper
• Load capacity up to 20 kg component weight
• Multi-machine connection links several units
• Reduced investment per machine through shared automation
• InfinityLine concept for modular expansions
• Easy integration of additional machines without rewiring
• Adjustable travel range to accommodate future requirements

Description
The InfinityPortal connects several lathes loaded with bar feeders to create automated production cells. Finished workpieces are picked by the EMCO component catcher and can be forwarded to subsequent operations such as turning, grinding, milling or deburring, or palletized as final parts. The system supports scalable multi-machine layouts and modular extension based on the InfinityLine concept.

Technical specifications

• Application: automation linking multiple lathes and bar feeders
• Part handling: EMCO component catcher for finished parts
• Integration: multi-machine connection and modular InfinityLine concept
• Load capacity: up to 20 kg component weight
• Axes: servo-driven (standard)
• Gripper: part gripper (standard)
• Expandable: travel range adjustable; additional machines integrated without rewiring
• Output options: feed to downstream processes or palletization
