Robotic unloading cell SMARTAXLOAD-MILLpalletizingmillingloading
Add to favorites
Compare this product
Characteristics
- Function
- handling, loading, unloading, palletizing, machine unloading, machining, milling, finishing, deburring
- Other characteristics
- smart
Description
Overview
Equipment & Highlights
Applications
Technical characteristics / specifications

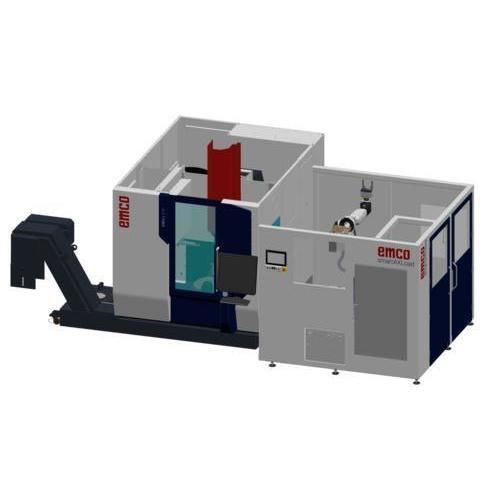

- Flexible robotic cell to automate CNC milling machines and convert them into unmanned production cells as part of the EMCO AX Automation portfolio.
- Industrial design for extended unmanned operation and straightforward integration with CNC machines.
Equipment & Highlights
- Two-pallet system: Interchangeable 2-blister solution in Euro pallet format 1,200 x 800 mm for extended operation without operator intervention.
- Robot: Industrial robot with 35 kg standard payload and a wide working range.
- Gripper: Fixed pneumatic gripper designed for parts up to 16 kg (actual payload depends on part geometry and gripper weight).
- Optional processes: Integration of deburring, component cleaning and component marking.
- Upgradeable: Bin picking and 3D scanner options for handling unsorted parts.
Applications
- Ready-to-use automation cell for EMCO CNC milling machines.
- Can be combined with finishing and vision/picking upgrades to process unsorted parts and add post-processing steps.
Technical characteristics / specifications
- Commercial designation: smartAXLoad-MILL
- Brand: EMCO
- Robot payload (standard): 35 kg
- Two-pallet blister format: Euro pallet size 1,200 x 800 mm (standard 2-blister system)
- Fixed pneumatic gripper capacity: up to 16 kg (dependent on gripper geometry and part)
- Optional integrations: deburring, component cleaning, component marking
- Upgradeable options: bin picking and 3D scanner for unsorted components
- Design emphasis: industrial robustness for extended unmanned operation
