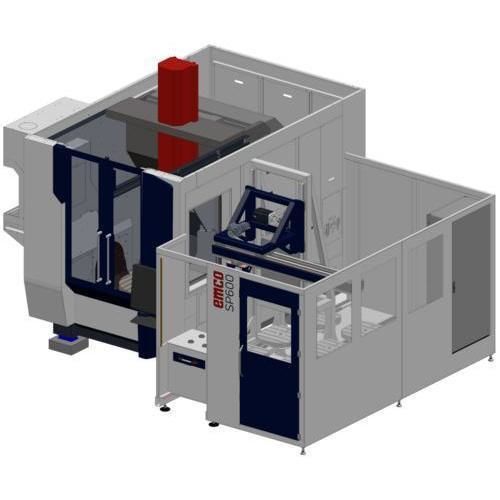

Automated pallet changer SMALLPALLET600

for machining centers

Overview
The SP-600 (SmallPallet600) is a compact pallet changer designed for pallet changing on the UMILL 1000. It provides automated pallet handling for 600 x 600 mm pallets while maintaining operator access and a minimal footprint (under 10 m²). The system supports a total load up to 400 kg and includes a 9-slot portal for extended autonomous operation.

Equipment

• Full automation of the UMILL 1000 with SP-600 while maintaining operator accessibility
• System dimensions optimized for this machine class
• Compact handling capacity for 600 x 600 mm pallets
• Designed for a maximum total load of 400 kg
• 9 pallet slots in the portal system for increased autonomy
• Minimal footprint: under 10 m²
• Standard manual loading station for safe and ergonomic loading

Applications and integration
The SP-600 is suitable for integration in machining cells and retrofit projects where pallet automation is required for CNC machines such as the UMILL 1000. The compact portal layout enables installation in constrained spaces and simplifies interfacing with machine controls and cell safety concepts.

Technical specifications

• Model: SP-600 (SmallPallet600)
• Intended for: UMILL 1000 pallet changing integration
• Pallet size supported: 600 x 600 mm
• Maximum total load capacity: 400 kg
• Number of pallet slots (portal system): 9
• Footprint: under 10 m²
• Operator access: maintained during automation
• Loading: standard manual loading station included
