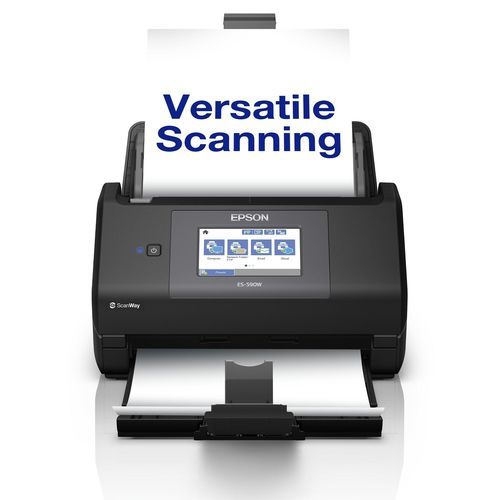

High-speed document scanner ES-590W

touchcolorwireless

Overview
Keep business documents organised with the WorkForce ES-590W, a high-speed A4 sheetfed scanner with single-pass auto-duplex and a 100-sheet automatic document feeder (ADF). The 10.9 cm colour touchscreen and Wi‑Fi enable standalone scanning to cloud services, network folders, email or USB without a PC. Bundled software (Epson Scan 2, Epson ScanSmart) includes preview, OCR and cloud integration to create searchable PDFs and editable Office files.

Key features

• 45 pages per minute / 90 images per minute (mono & colour) with single-pass duplex
• 100-sheet ADF with ultrasonic double-feed detection
• 10.9 cm colour touchscreen with customisable presets for standalone operation
• Wi‑Fi, Wi‑Fi Direct and USB 3.2 connectivity for flexible workflows
• Scan direct to cloud, network folders, email or USB without a PC
• Image processing: auto crop, de-skew, background removal, skip blank pages
• Supports diverse media: receipts, business cards, embossed plastic cards, 27–413 g/m²
• High recommended daily duty cycle: up to 5,000 pages
• ReadyScan LED light source and CIS optical sensor

What is in the box?

• AC adapter
• Main unit (scanner)
• Power cable
• Setup guide
• USB 3.0 cable
• Warranty card

Legal / Security statement
Complies with applicable Product Security and Telecommunications Infrastructure requirements. Security updates will be provided for 7 years from purchase.

Technical specifications

• Scanner type: Sheetfed (ADF)
• Model: WorkForce ES-590W
• Optical resolution (ADF): 600 x 600 DPI
• Output resolutions: 75, 100, 150, 200, 240, 300, 600, 1200 DPI
• Maximum document size (ADF): 215.9 mm x 6,096 mm
• Minimum document size (ADF): 50.8 mm x 50.8 mm
• Supported formats: A4, A5, A6, B5, B6, Letter, Legal, Postcard, Business cards, Plastic cards
• Colour depth: Input 30-bit colour / 8-bit mono, Output 24-bit colour / 8-bit mono
• ADF capacity: 100 sheets; paper weight: 27–413 g/m²
• Duplex: Single-pass dual scanning
• Daily duty cycle: up to 5,000 pages
• Connectivity: Wi‑Fi, Wi‑Fi Direct, USB host, USB 3.2 Gen 1x1, Wireless LAN IEEE 802.11a/b/g/n/ac
• Drivers/software: TWAIN, ISIS (download), Epson Scan 2, Epson ScanSmart, SANE, WIA, ICA
• Power: AC 100–240 V, 50–60 Hz; Energy use: 14 W (operation), 6.8 W (ready), 0.9 W (sleep), 0.1 W (off)
• Dimensions (W x D x H): 296 x 169 x 167 mm; Weight: 3.7 kg
• Operating temp/humidity: 5°C–35°C; 15%–80% RH
