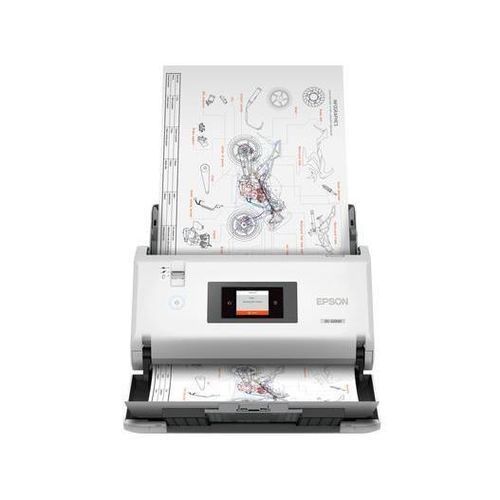

High-speed document scanner DS-32000

touchcolorcompact

Overview
The WorkForce DS-32000 is a high-volume A3 sheetfed departmental document scanner designed for intensive daily use (up to 40,000 pages/day). It features a configurable chassis (Normal, Horizontal, Compact), a colour touchscreen for job selection and maintenance prompts, and advanced media handling for passports and bound documents up to 6 mm thick.

Key capabilities

• High-speed duplex scanning: up to 90 ppm / 180 ipm (A4, 300 dpi) in single-pass dual scanning.
• Robust daily duty cycle: rated for up to 40,000 pages per day.
• Media versatility: supports A3/RA3 formats, plastic cards, business cards, envelopes and bound media up to 6 mm.
• Advanced paper handling and protection: ultrasonic double-feed detection and multiple paper-protection sensors.
• Integrated OCR and workflow: includes Epson Document Capture Pro for searchable PDFs and Office output (docx, xlsx, pptx).

What's in the box?

• AC adapter
• Main unit
• Power cable
• Setup guide
• USB 3.0 cable
• User manual (CD)

Technical specifications

• Scanner type: Sheetfed (single-pass dual scanning duplex).
• Optical resolution (ADF): 600 x 600 DPI; supported output: 50, 75, 100, 150, 200, 240, 300, 600, 1200 DPI.
• Scan speed (A4, 300 dpi): 90 pages/min (mono & color), 180 images/min (duplex).
• ADF capacity: 120 sheets; paper weight support: 20–413 g/m² (auto/manual).
• Document size (ADF): min 50.8 × 69 mm, max 304.8 × 5,588 mm; flatbed options available (A4/A3) for books and bound media.
• Image sensor / light source: CIS; ReadyScan LED.
• Colour depth: input 30-bit colour / 10-bit mono; output 24-bit colour / 8-bit mono.
• Connectivity & drivers: USB (compatible with USB 2.0 & USB 3.2 Gen 1x1); drivers TWAIN, WIA, ISIS, SANE, ICA; included software Epson Document Capture Pro / Epson Scan 2.
• Output formats & features: BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG, docx, xlsx, pptx; features include blank-page skip, deskew, colour enhancement, barcode recognition, dust removal.
• Power & dimensions: AC 100–240 V, 50/60 Hz; power consumption 23 W (operation); dimensions 371 × 167 × 245 mm; weight 6.9 kg.
• Options: Roller Assembly Kit; optional A4/A3 flatbed scanners for bound items.
