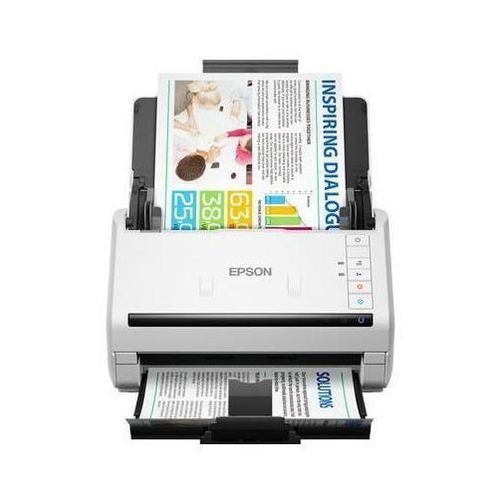

High-speed document scanner DS-770II

stationaryhigh-resolutionautomated

Overview
The WorkForce DS-770II is a sheetfed document scanner designed for high-volume office capture and integration into document workflows. It features a 100-page automatic document feeder (ADF), single-pass duplex scanning and speeds up to 45 pages per minute (90 ipm two-sided), with media handling for thin paper to thick card and long document support.

Key features

• Slow Mode for scanning fragile, wrinkled or long documents while limiting file-size growth.
• Active Separation Roller System to reduce double feeds and ensure reliable single-sheet feeding.
• Optional flatbed conversion kit to scan passports, stamps, books and other non-standard media.
• Auto Scan Mode to process batches into single files and streamline capture.
• Single-pass double-sided (duplex) scanning for rapid throughput.
• Ultrasonic double-feed detection with DFDS (Double Feed Detection Skip) for envelopes and stapled documents.

Applications

• Centralized office scanning and mailroom capture.
• Records digitization, indexing and archiving workflows.
• Integration with document management systems via TWAIN/WIA/ISIS drivers.

What's in the box

• Main unit
• Driver and utilities
• Power cable
• USB cable
• Setup guide
• Warranty document

Technical specifications

• Scanner type: Sheetfed document scanner
• ADF capacity: 100 pages
• Optical resolution (ADF): 600 x 600 dpi
• Scan speed: Up to 45 ppm (monochrome/color A4, 200/300 dpi); 90 ipm two-sided
• Supported media weight: 27 – 413 g/m²
• Maximum document size: 215.9 mm × 6,096 mm
• Minimum document size (ADF): 50.8 mm × 50.8 mm
• Output formats: BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
• Interfaces: USB 3.2 Gen 1x1 (High-speed USB 3.0)
• Drivers: TWAIN, WIA, ISIS, SANE (Linux), ICA (Mac)
• Included software: Epson Scan 2, Document Capture Pro (Windows), Document Capture (Mac), Presto! BizCard
• Recommended daily duty cycle: 7,000 pages
• Power: AC 100–240 V; typical operation 12 W
• Dimensions: 296 × 169 × 176 mm; Weight: 3.7 kg
